Heat Exchangers - 77.01.067.GR

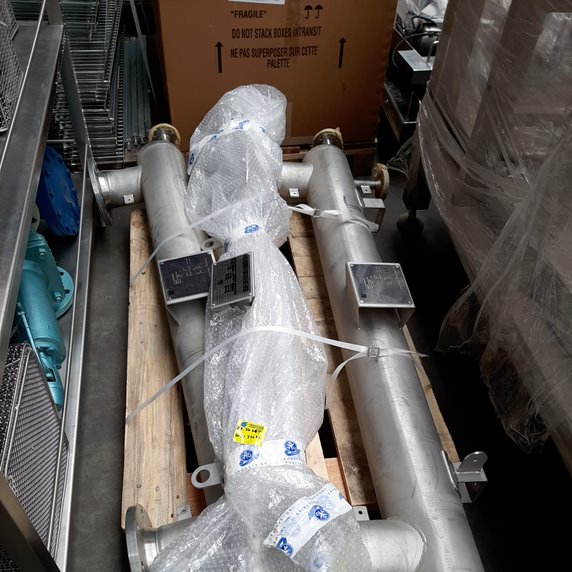

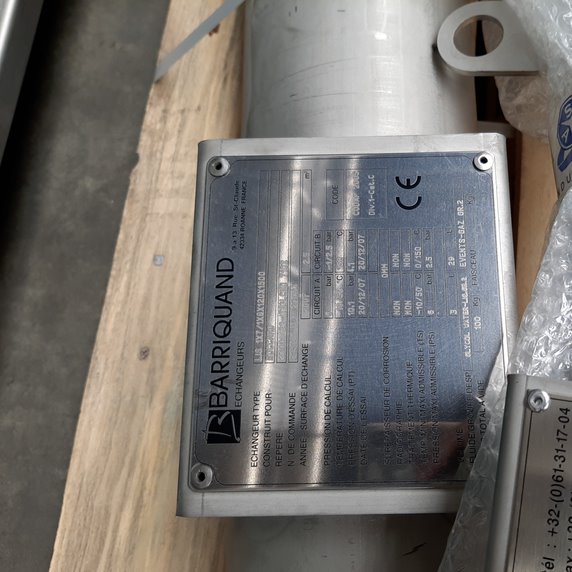

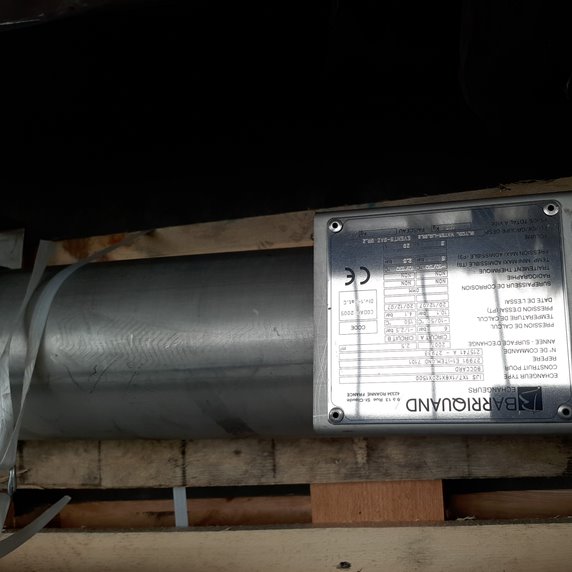

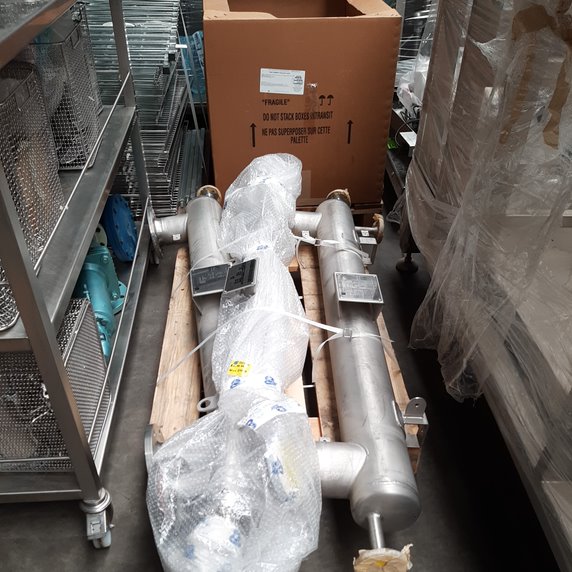

Boccard IJS 1x7 / 1x8x120x1500 Heat Exchangers (2 Unit)

Brand : Boccard

Model : IJS 1x7 / 1x8x120x1500

Yom : 2007

Design Pressure Circuit A : 6 Bar

Design Pressure Circuit B : -1/2.5 Bar

Design Temperature Circuit A : -10/50℃

Design Temperature : 150℃

Test Pressure Circuit A : 10.1 Bar

Test Pressure : 4.1 Bar.

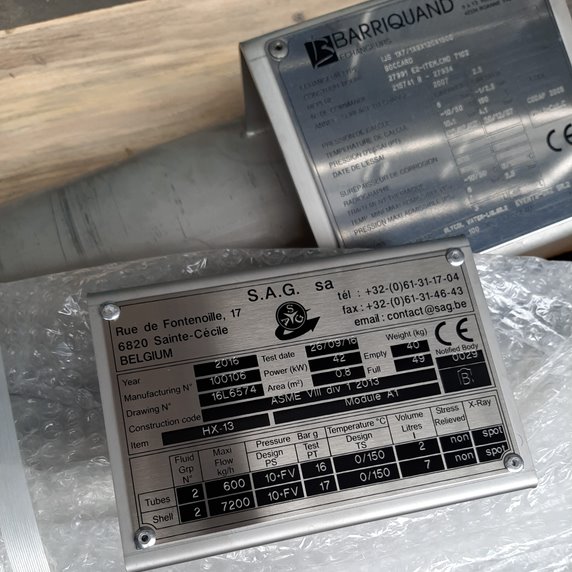

SAG HX-13 Heat Exchangers (1 Unit)

Brand : SAG

Model : HX-13

Yom : 2016

Power : 42 Kw

Area : 0.8 M²

Maxi Flow Tubes : 600 Kg/h

Maxi Flow Shell : 7200 Kg/h

Design Pressure Tubes / Sheel : 10 Fv

Test Pressure Tubes : 16 Barg

Test Pressure Shell : 17 Barg

Volumen Tubes : 2 L

Volume Shell : 7 L
