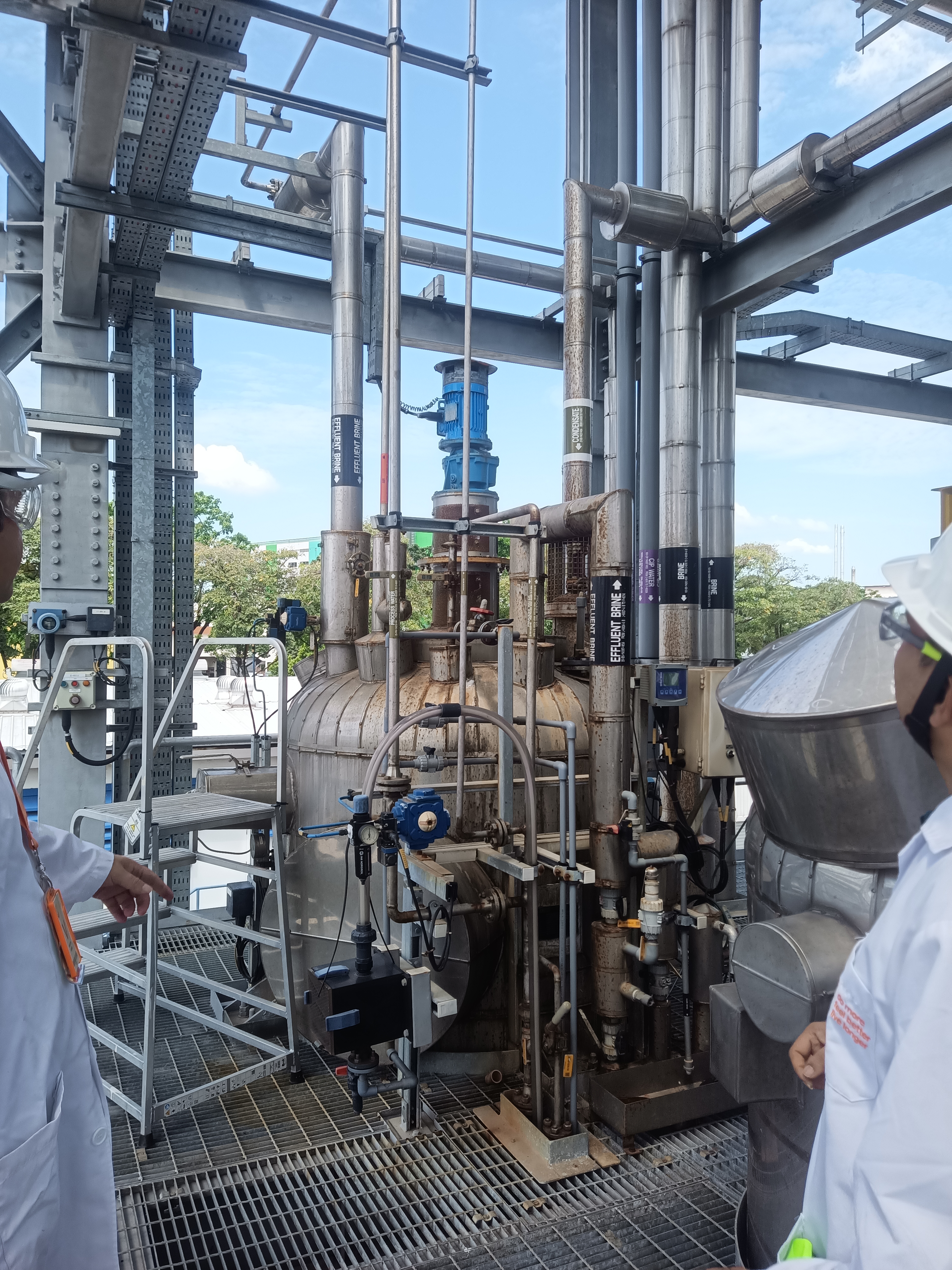

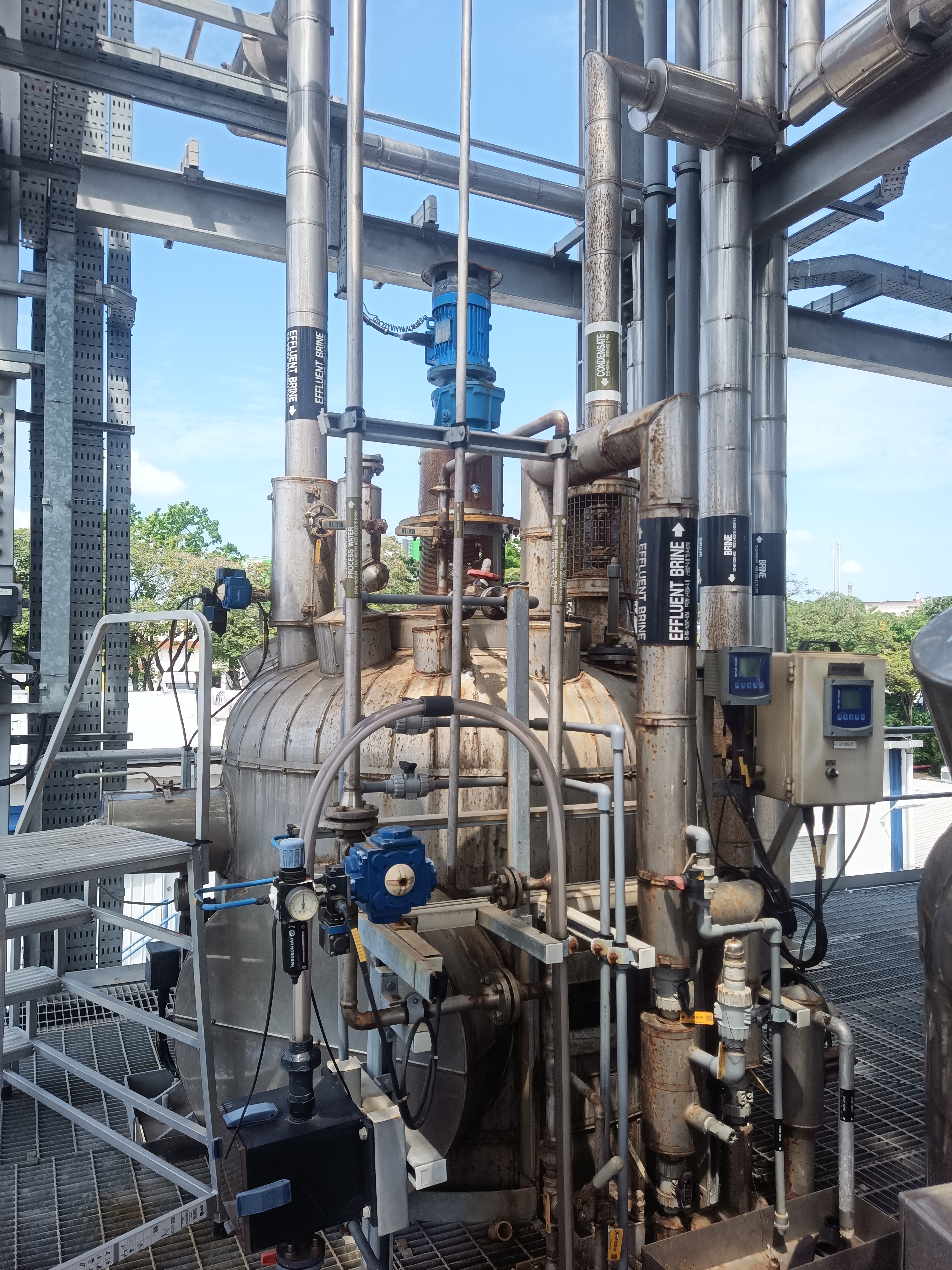

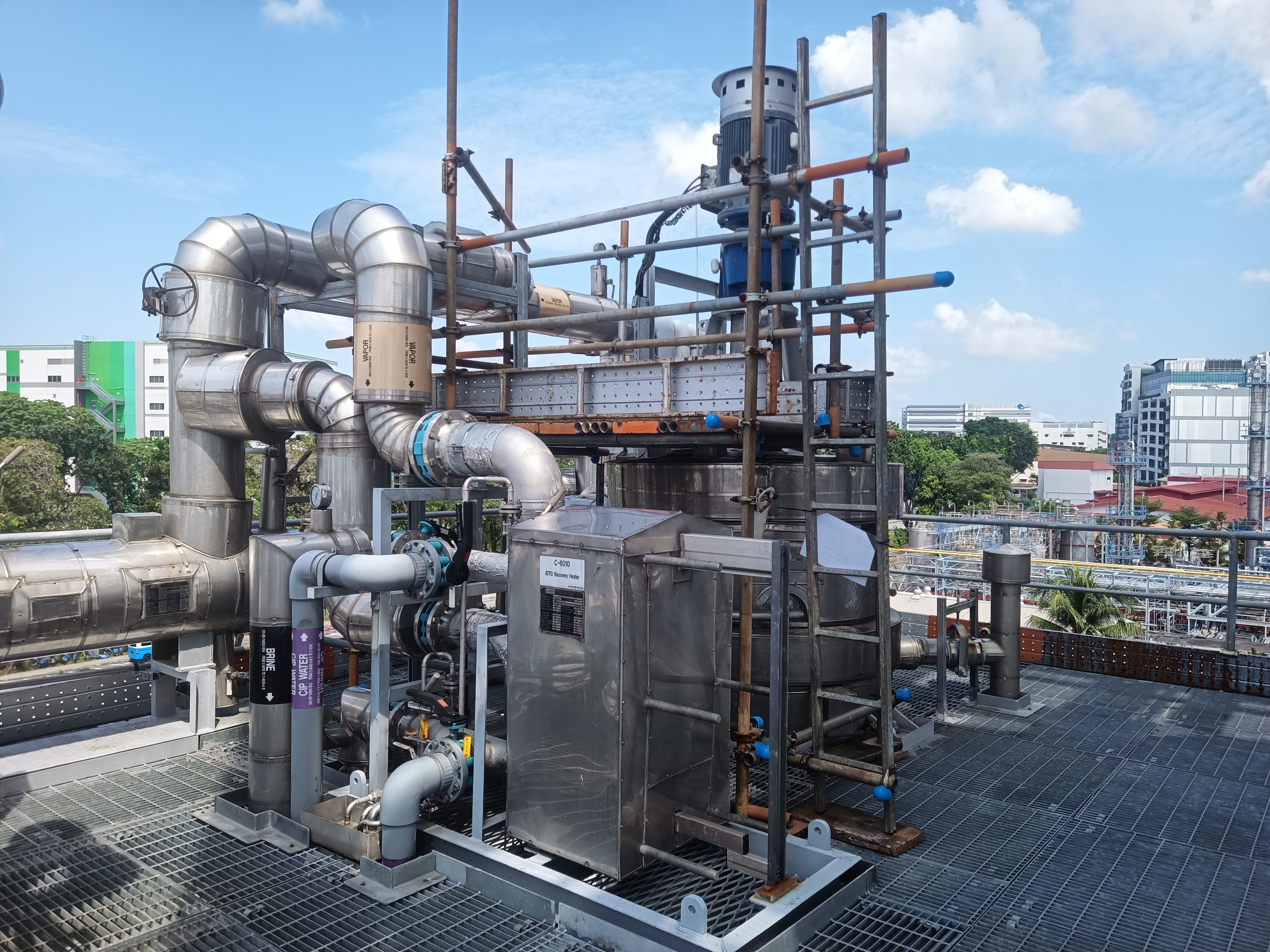

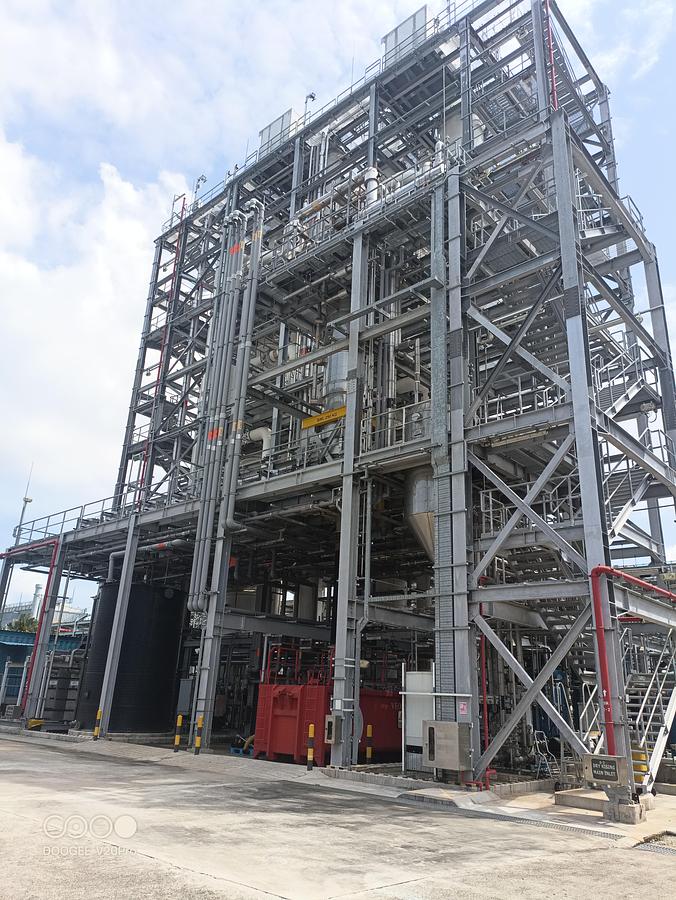

Waste Water Treatment Plant - Gradiant - SG.129.GQ

Continuing Of

Preheater

Model : FP82-389-2-NH

Mass Flow Rate : 71231.15 Kg/h

Volume Flow Rate : 72.871 m³/h

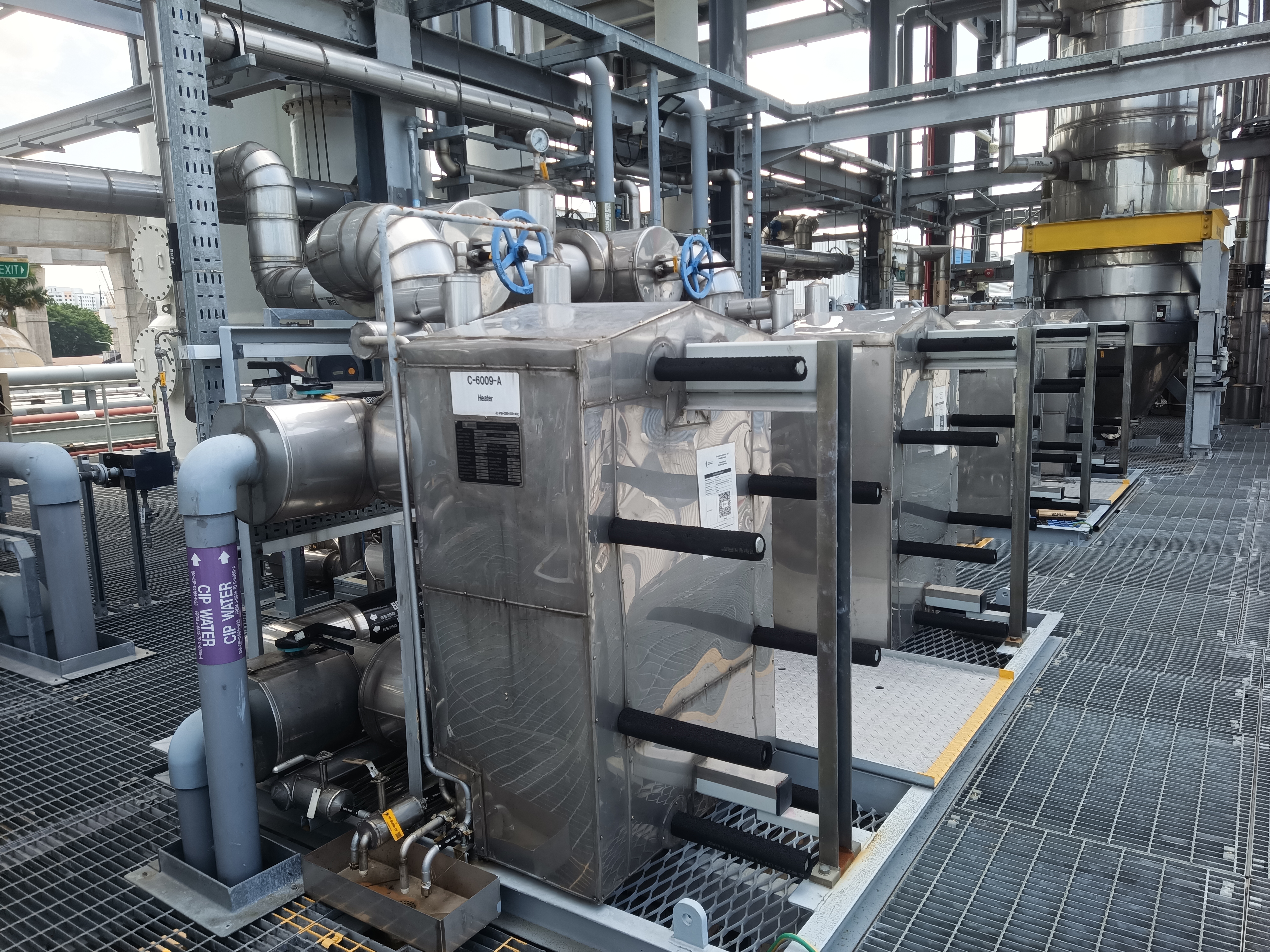

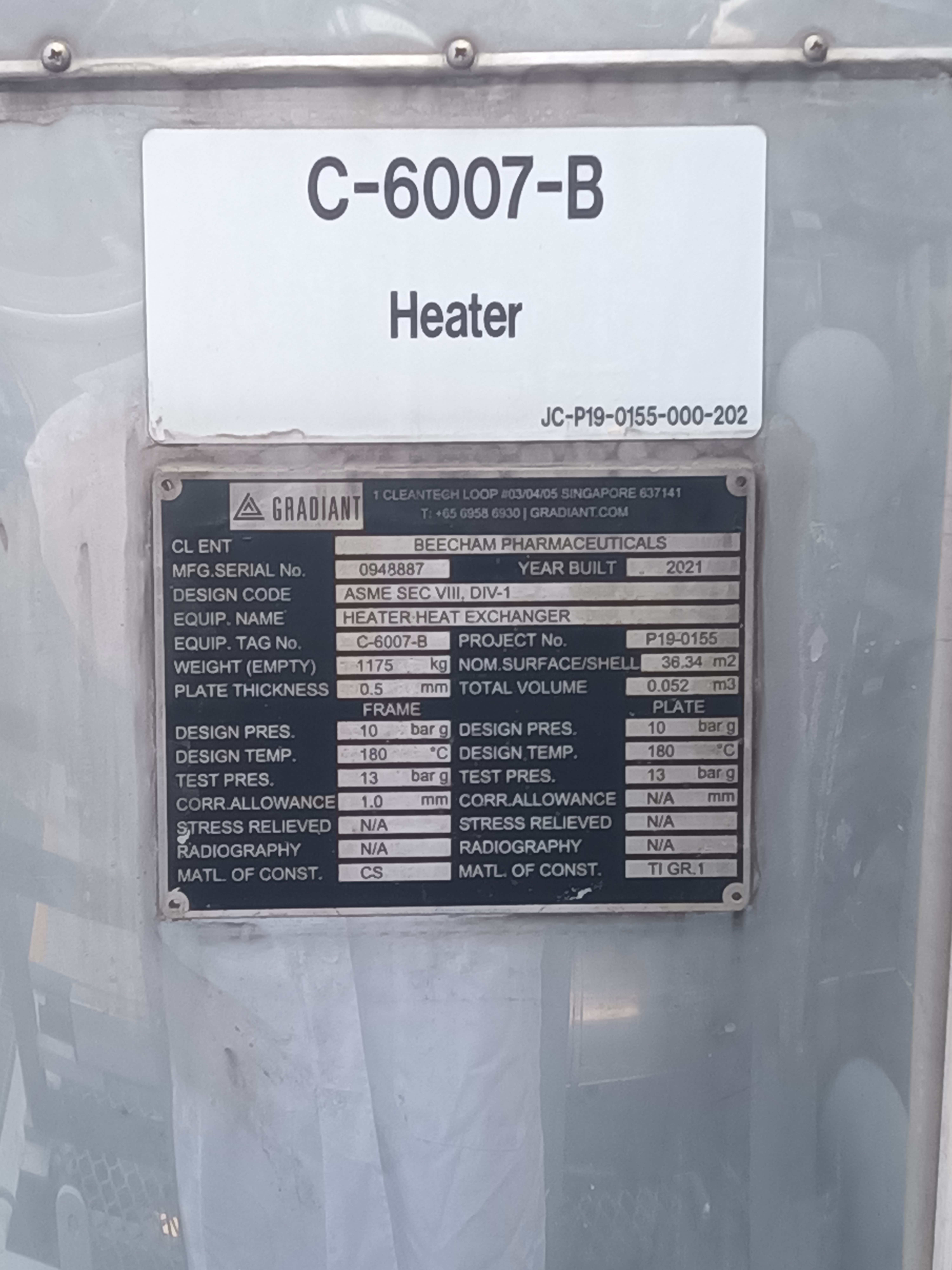

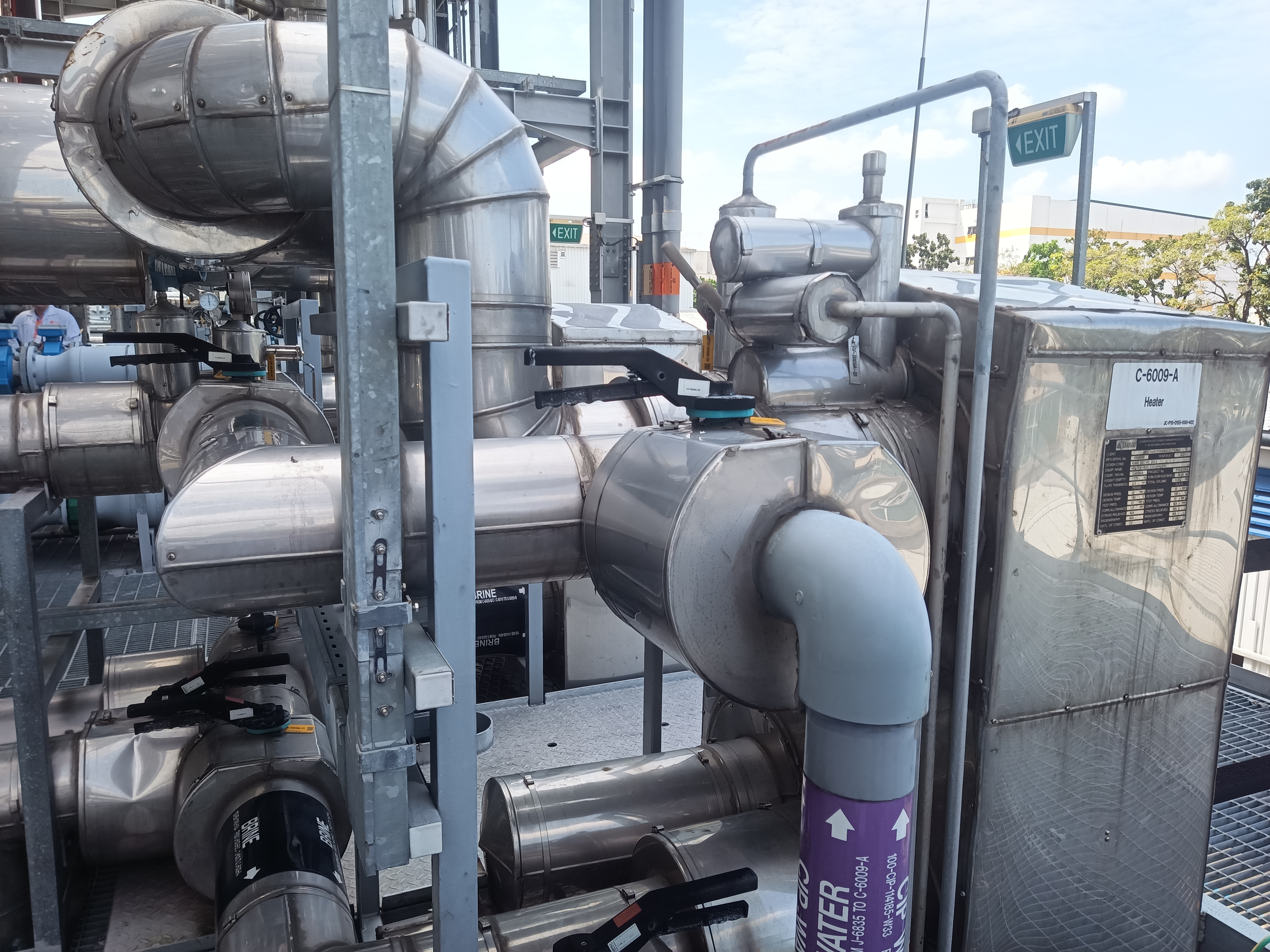

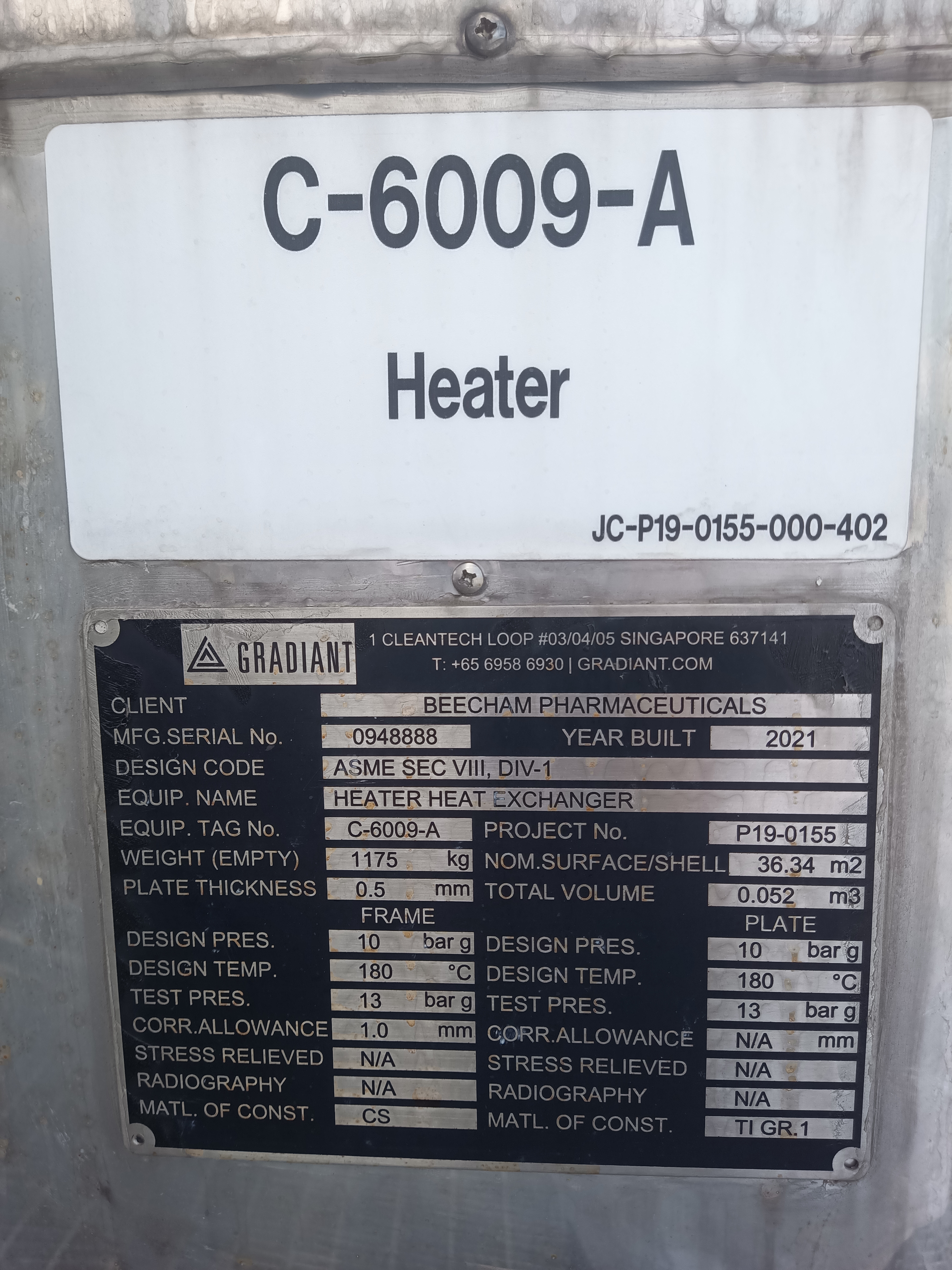

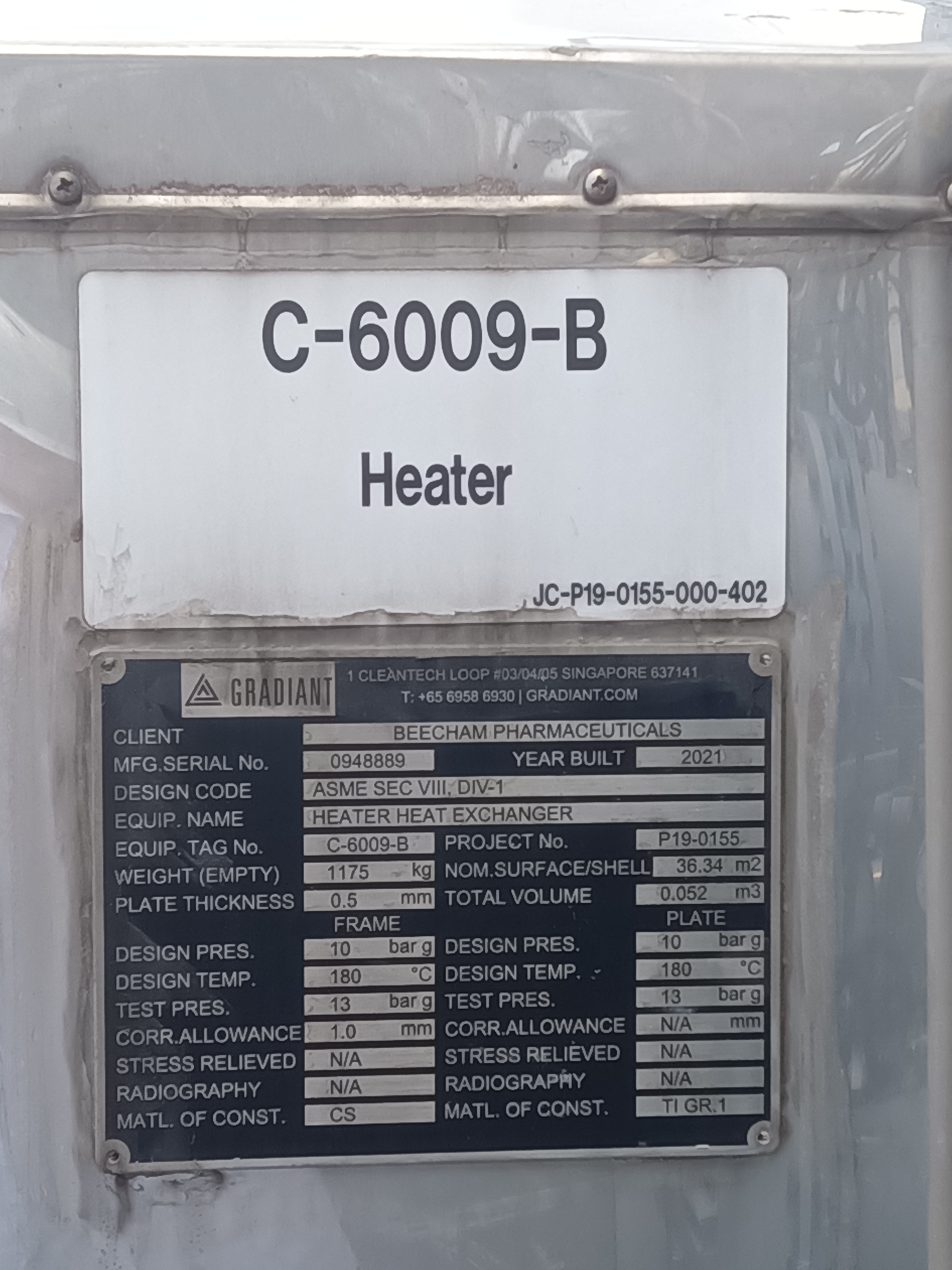

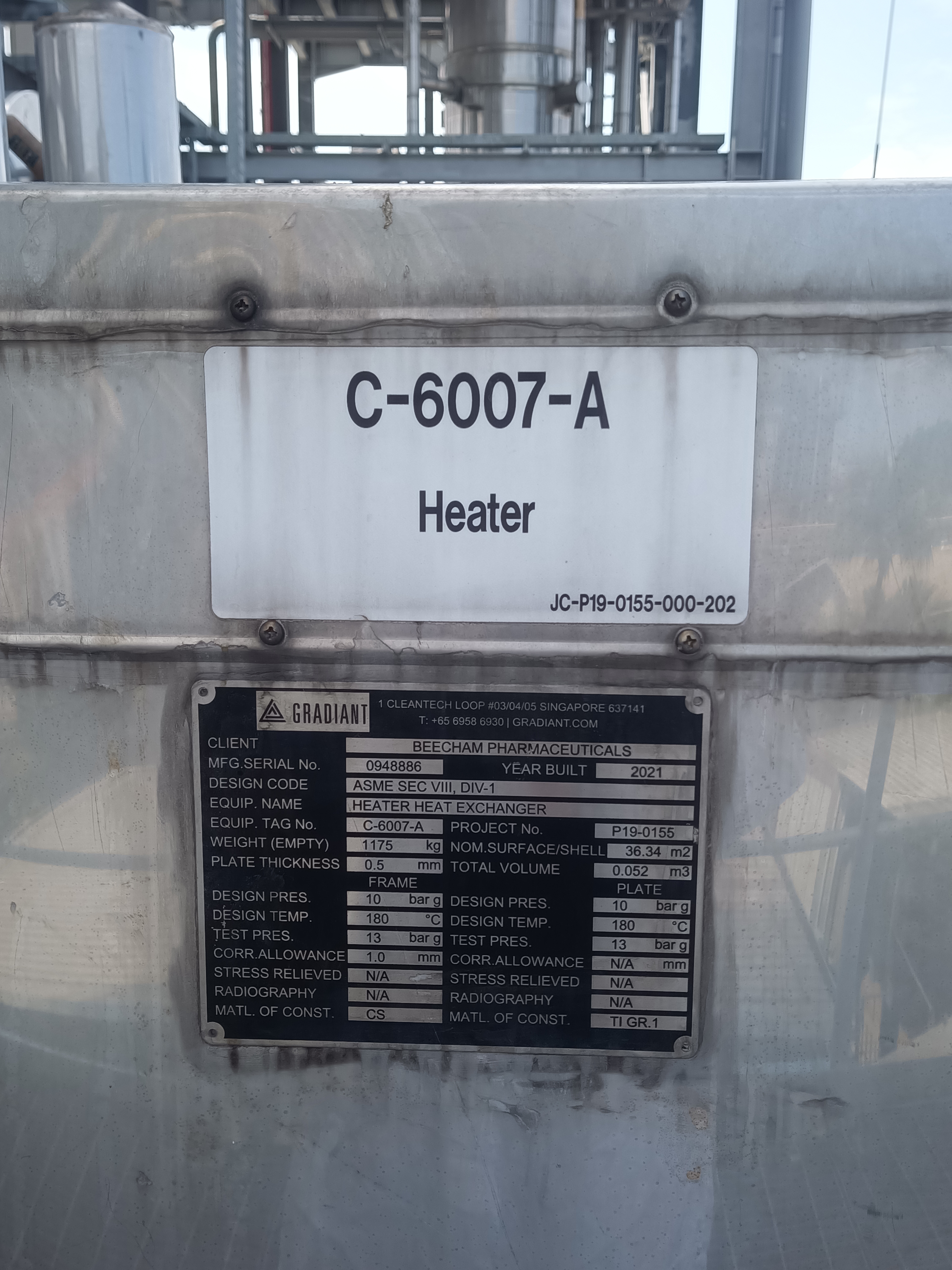

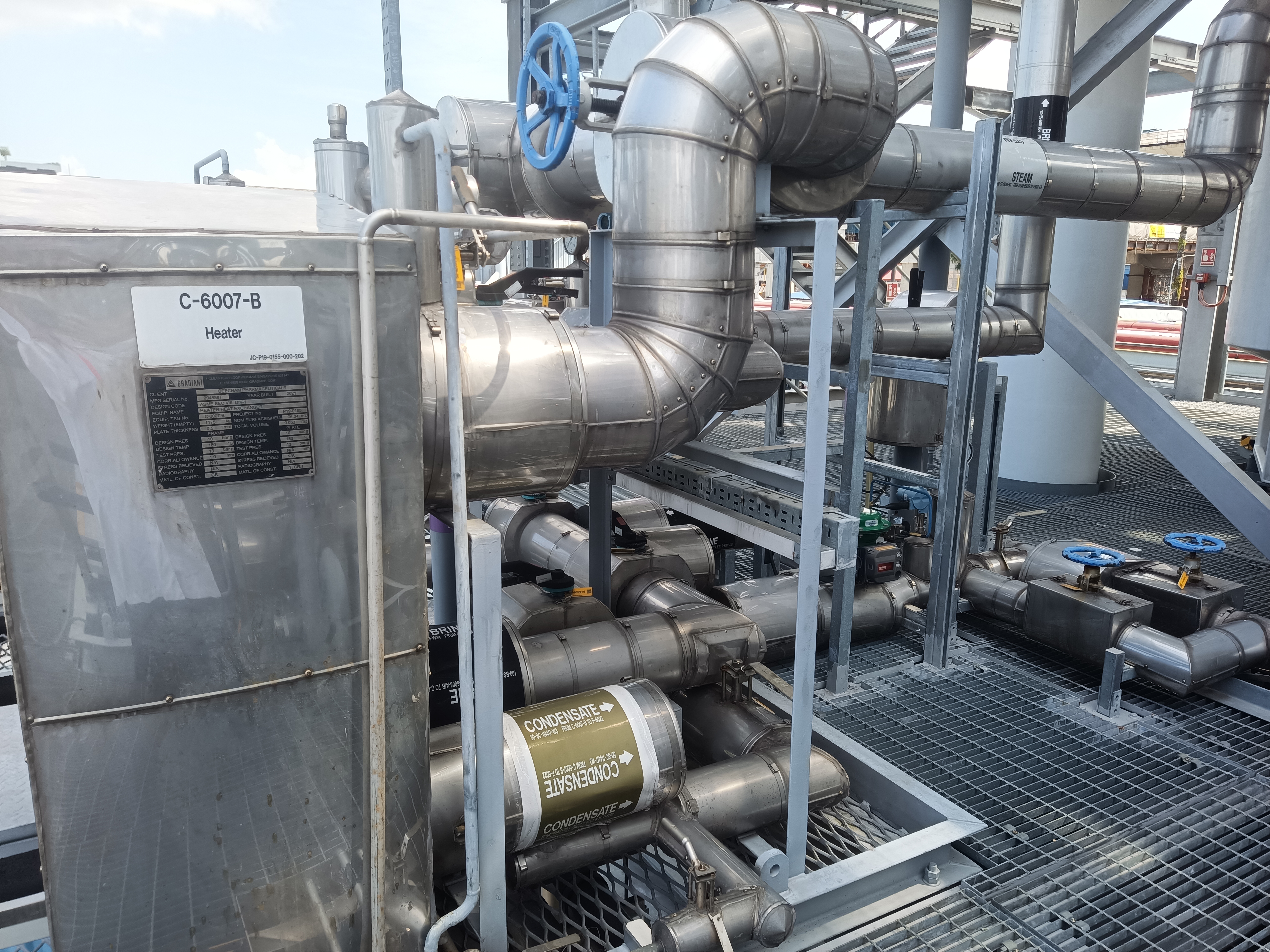

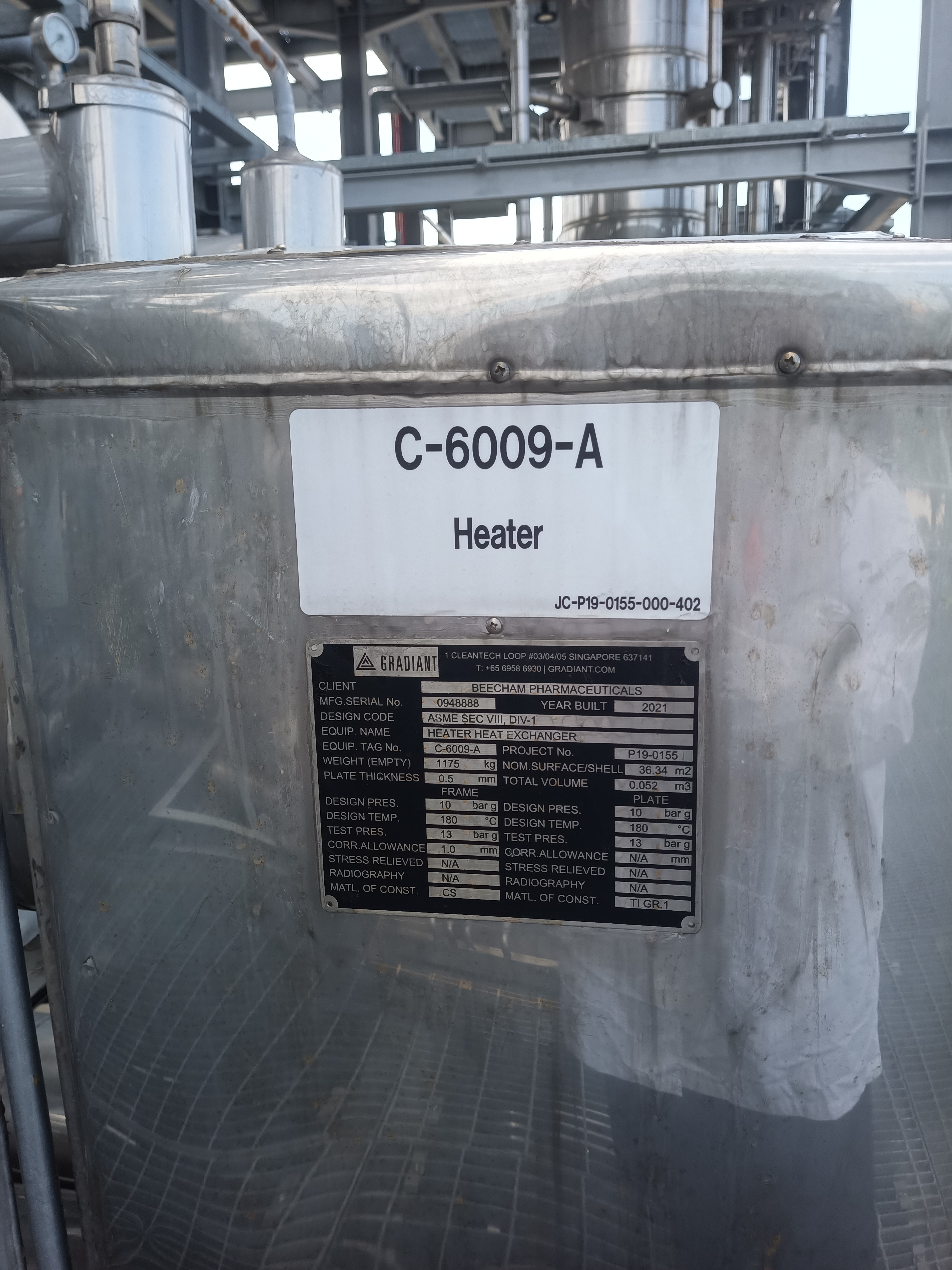

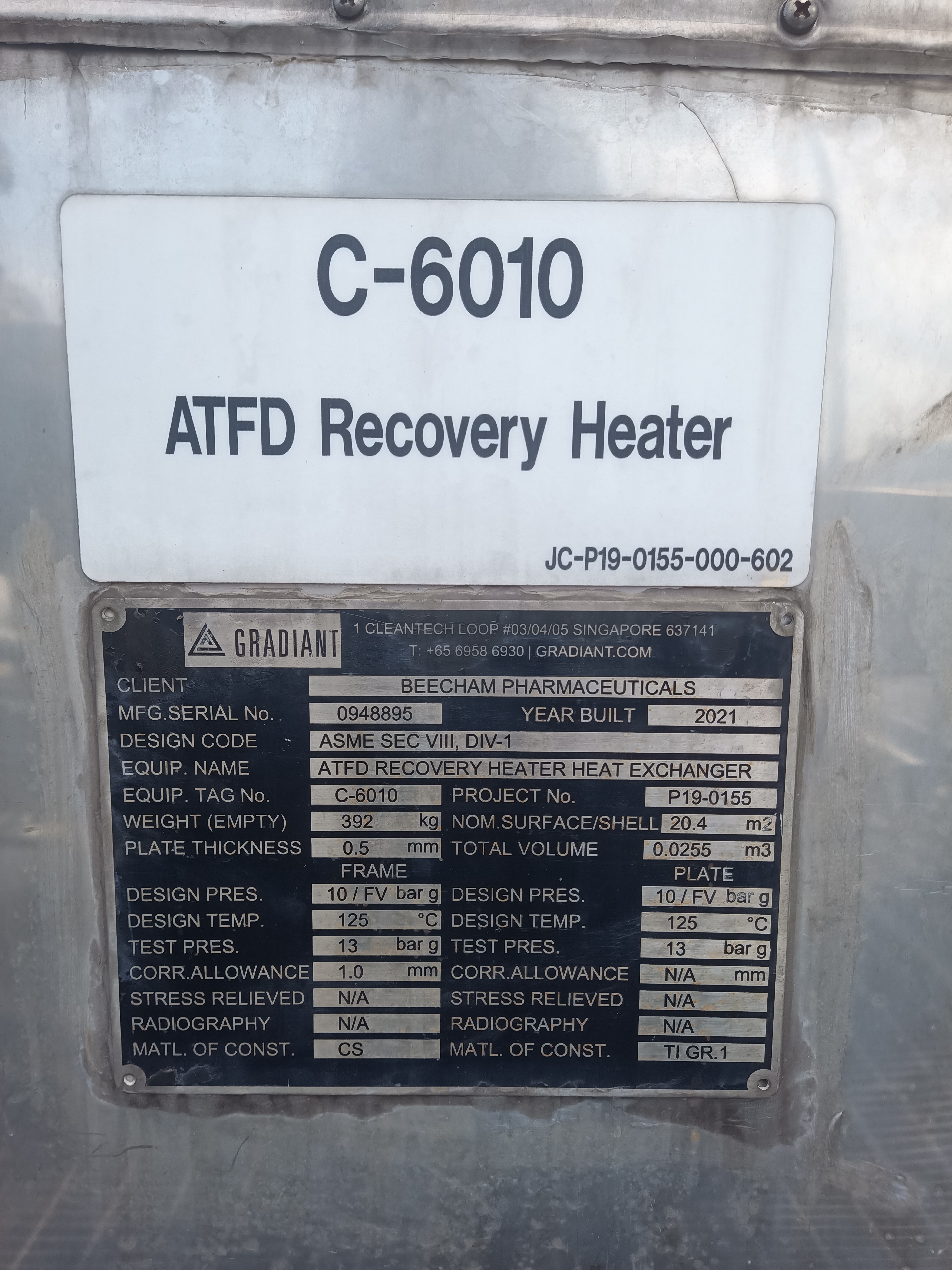

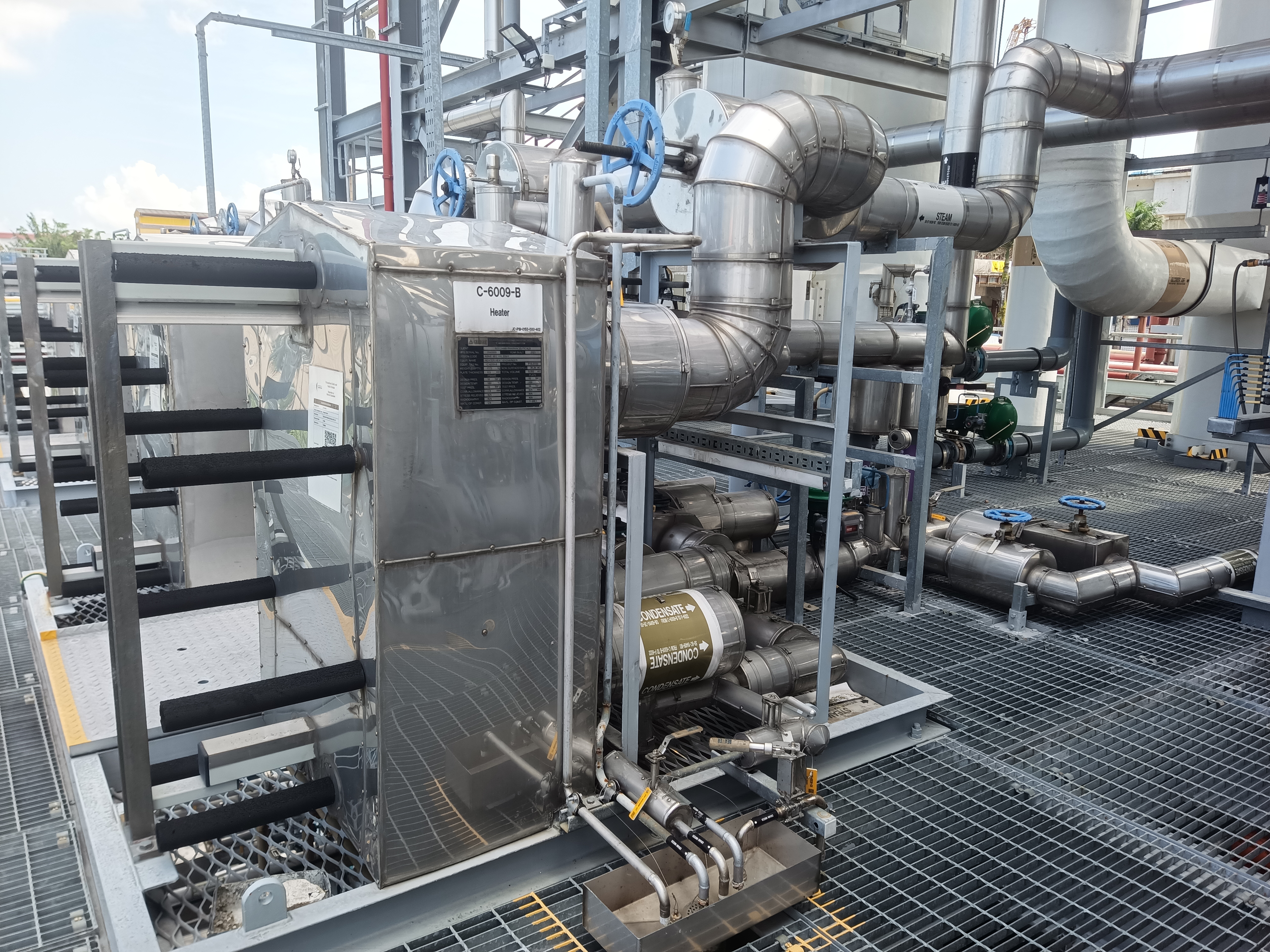

Heater

Model : Fp405-81-2VS

Mass Flow Rate : 1996.40 Kg/h

Volume Flow Rate : 1.00

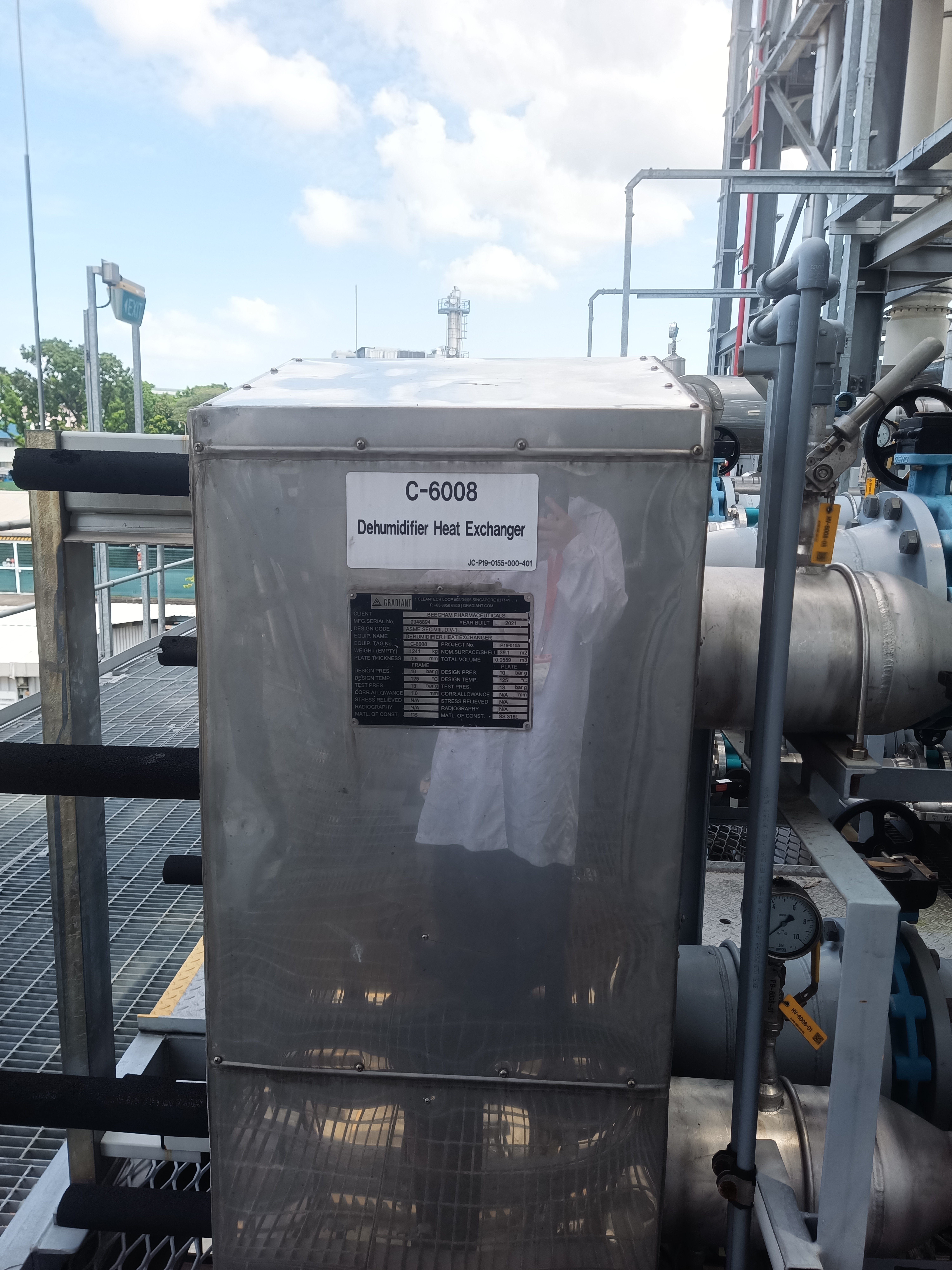

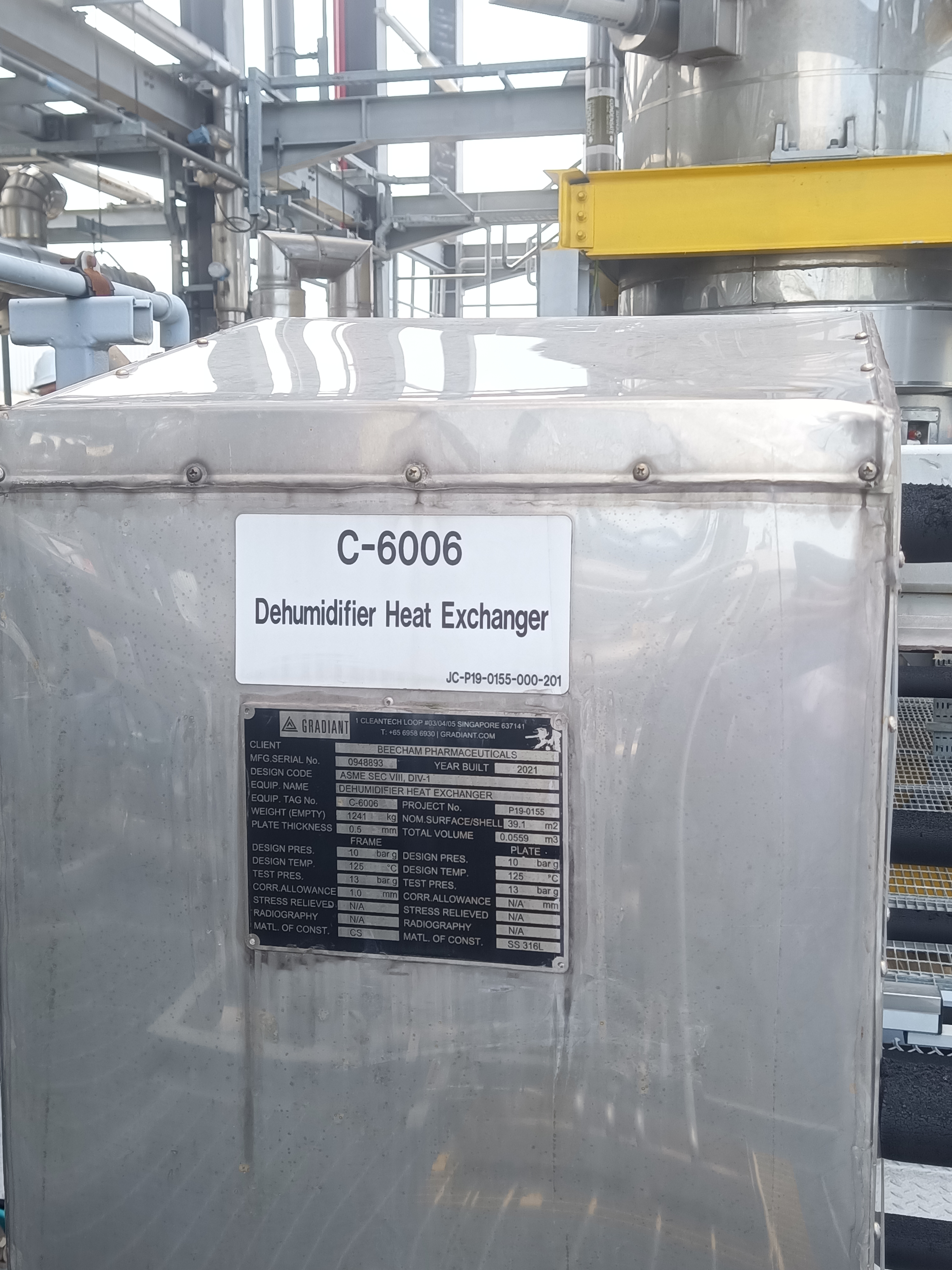

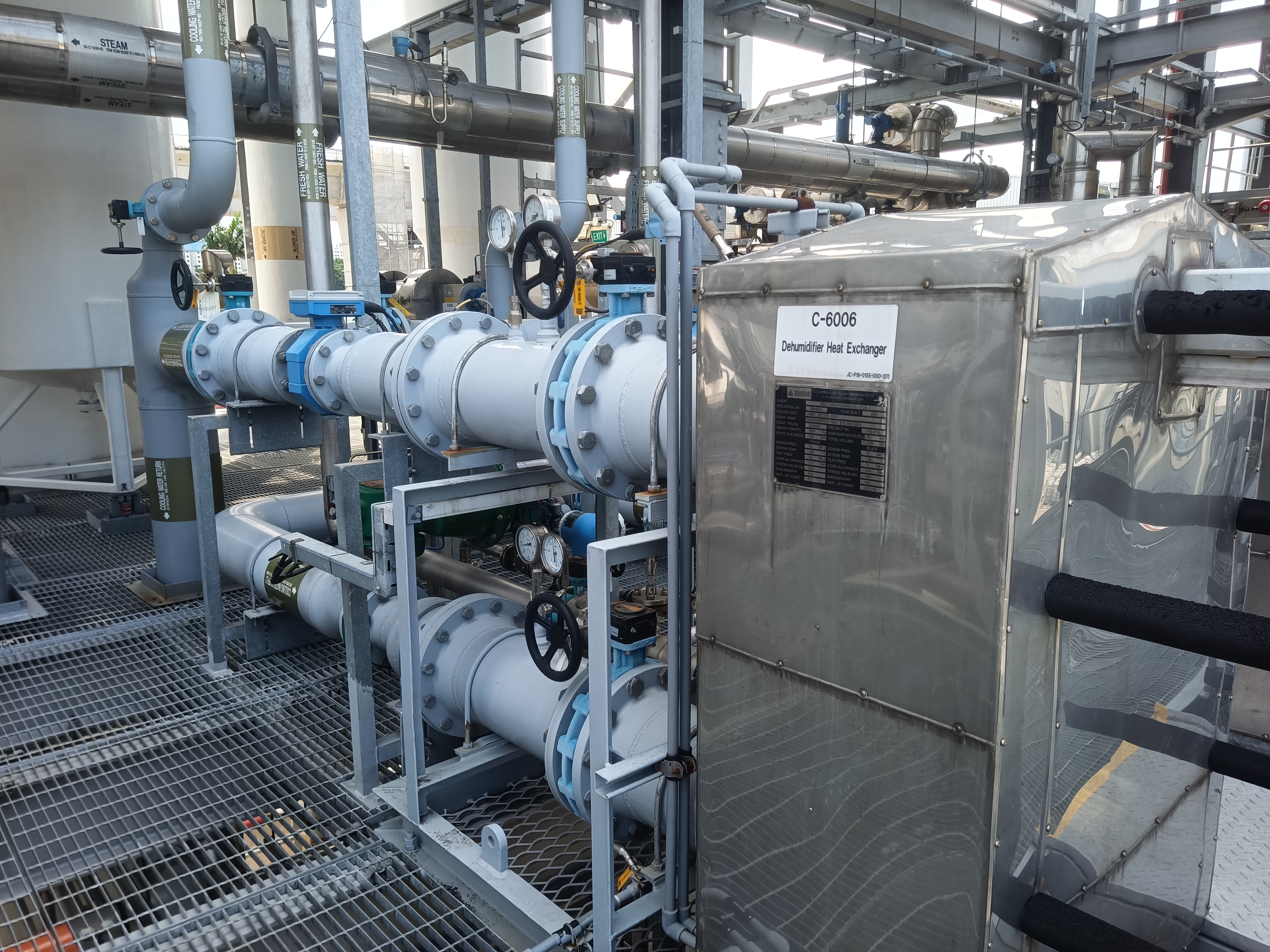

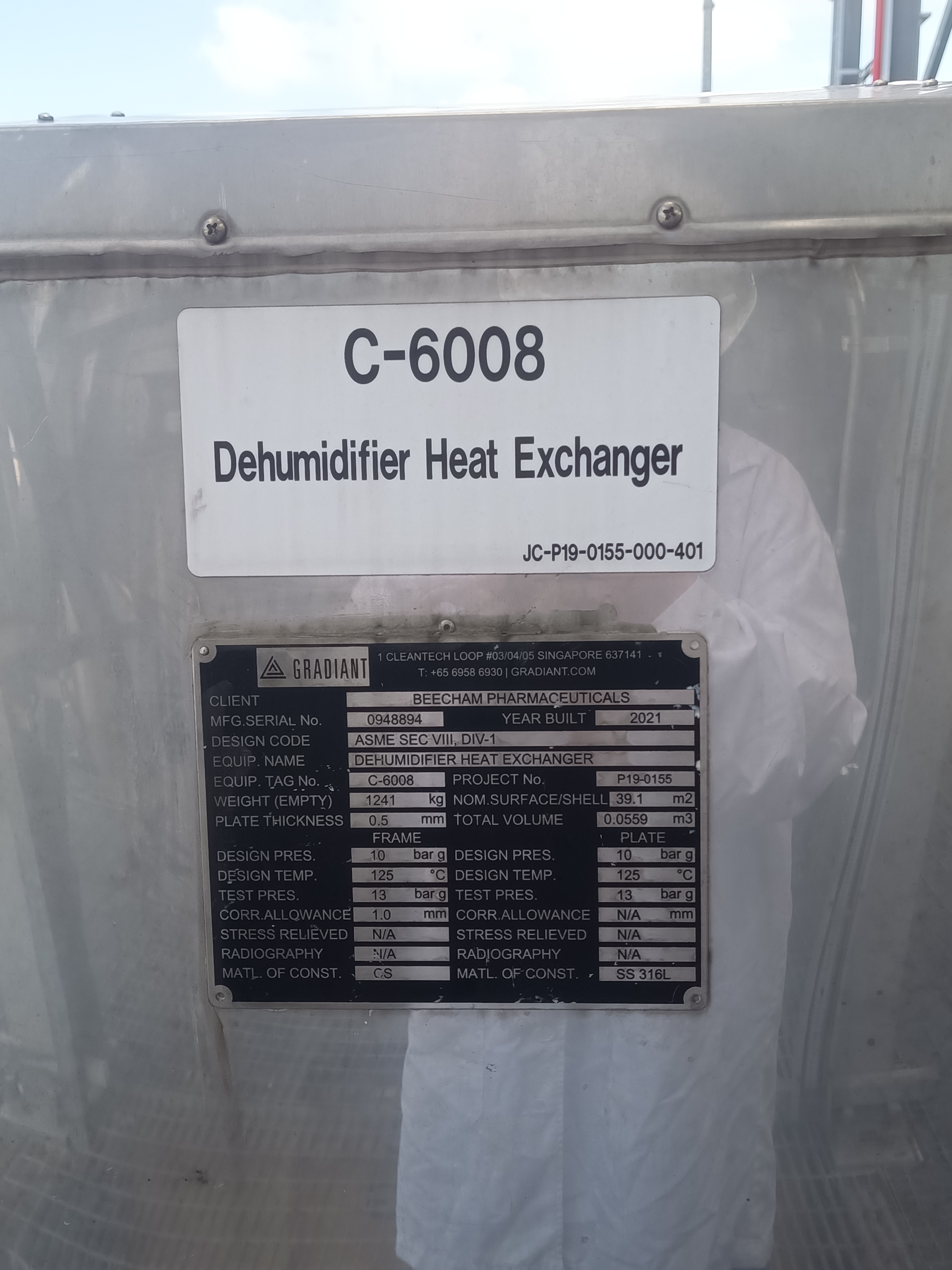

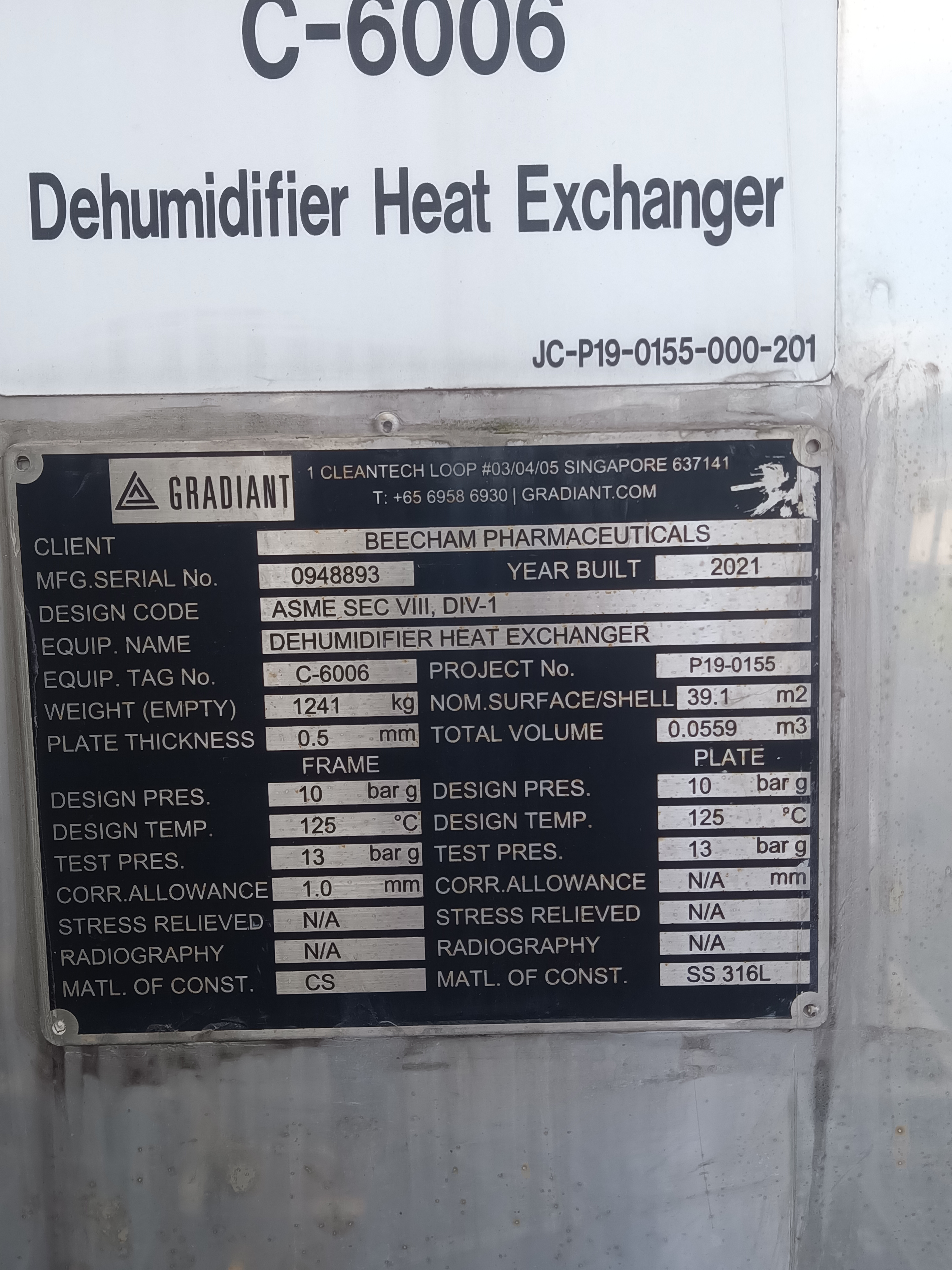

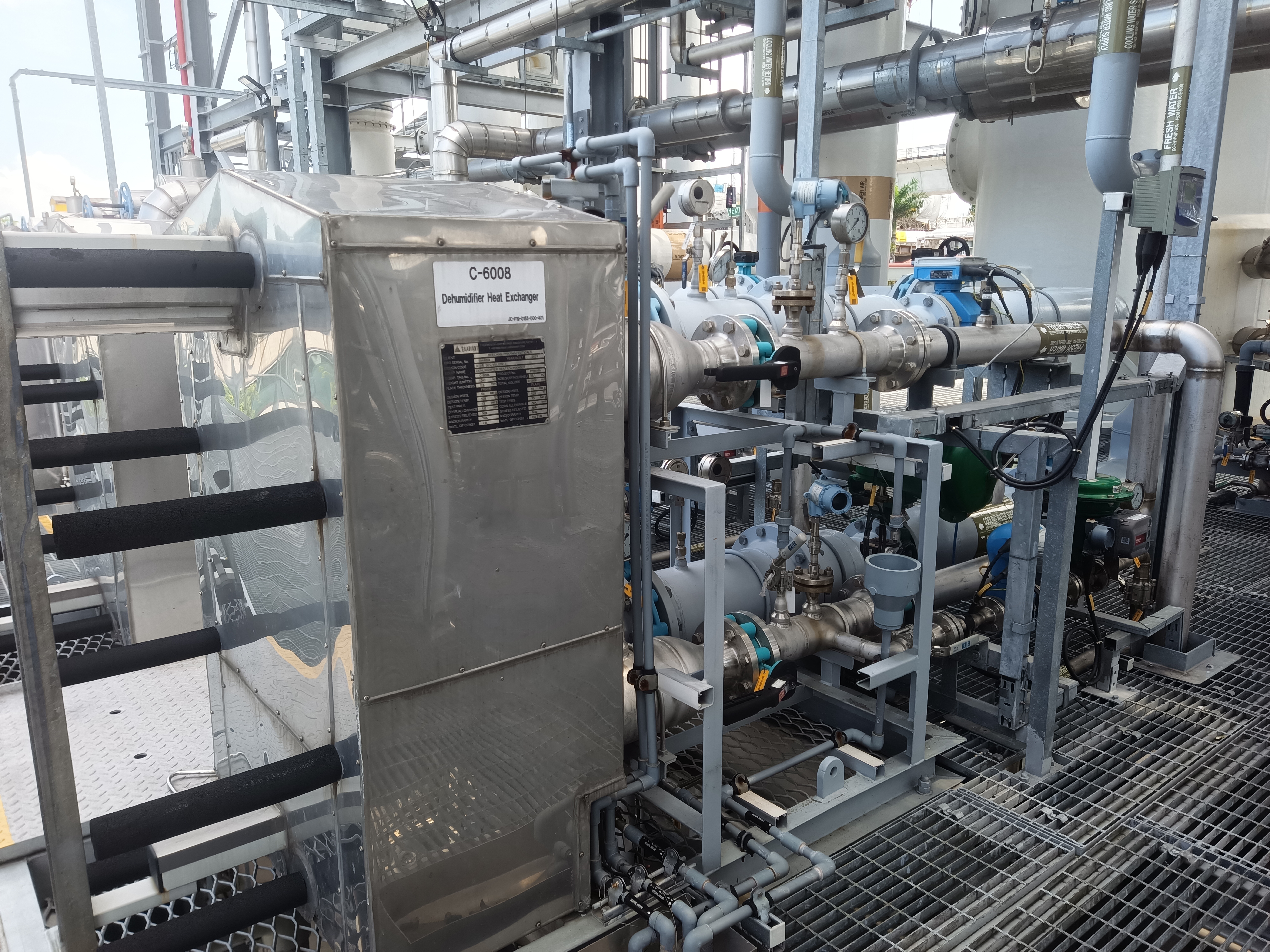

Dehumidifier

Model FP 405-87-1-NH

Mass Flow Rate : 19.53 Kg/s

Volume Flow Rate : 70.590 m³/h

Balancing Tank Feed Pump

Flow : 13.2 m³/h

Brine Recirculation Pump

Flow : 86.6 m³/h

Ph Adjustment Tank Transfer Pump

Flow : 13.2 m³/h

Fw Recirculation Pump

Actual Calculated Flow : 83.7 m³/h

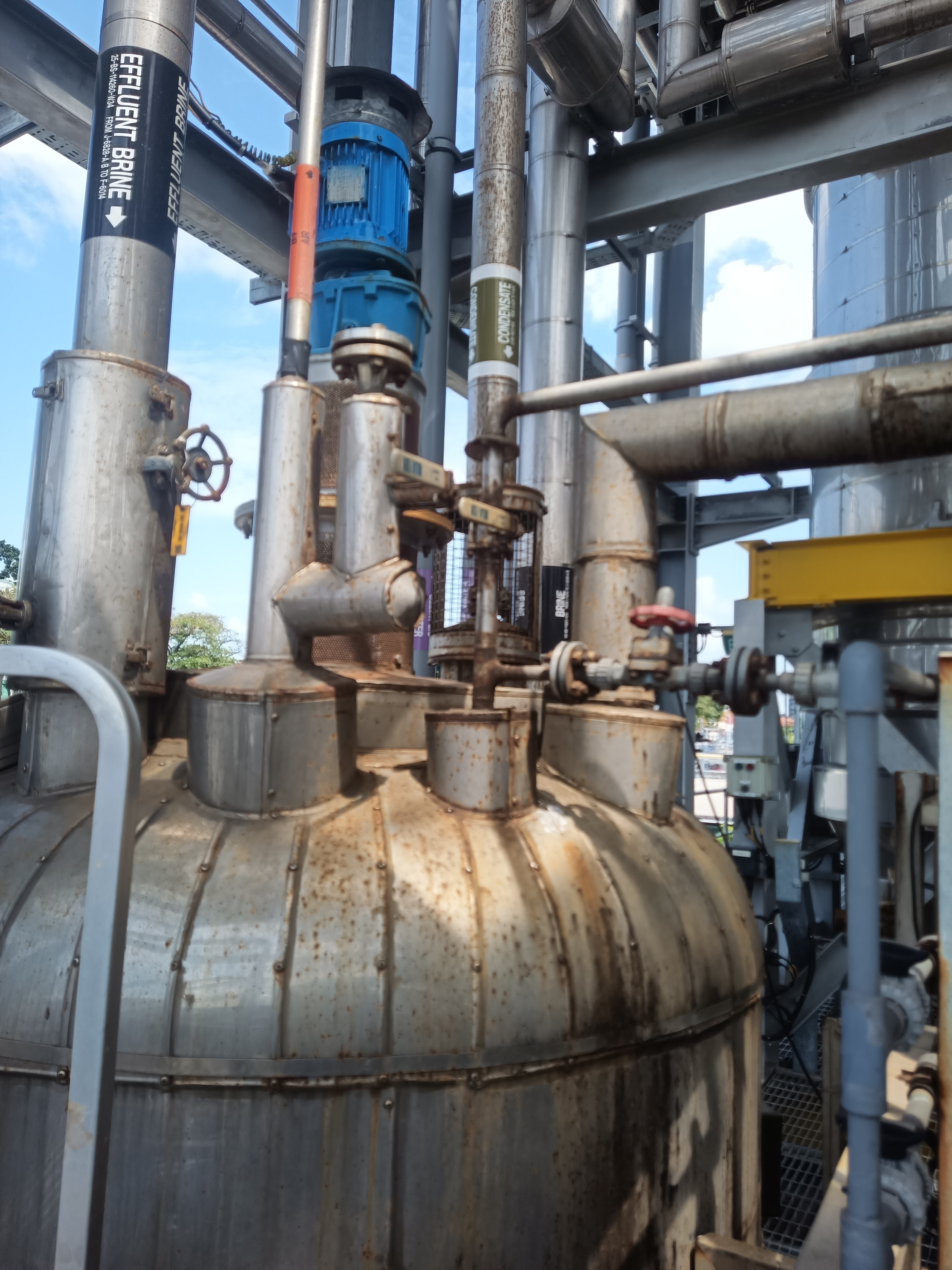

Effluent Brine Pump

Flow : 5.95 m³/h

Brine Recirculation Pump

Flow : 86.6 m³/h

Cip Pump

Flow : 87 m³/h

Effluent Pump

Flow : 15.6 m³/h

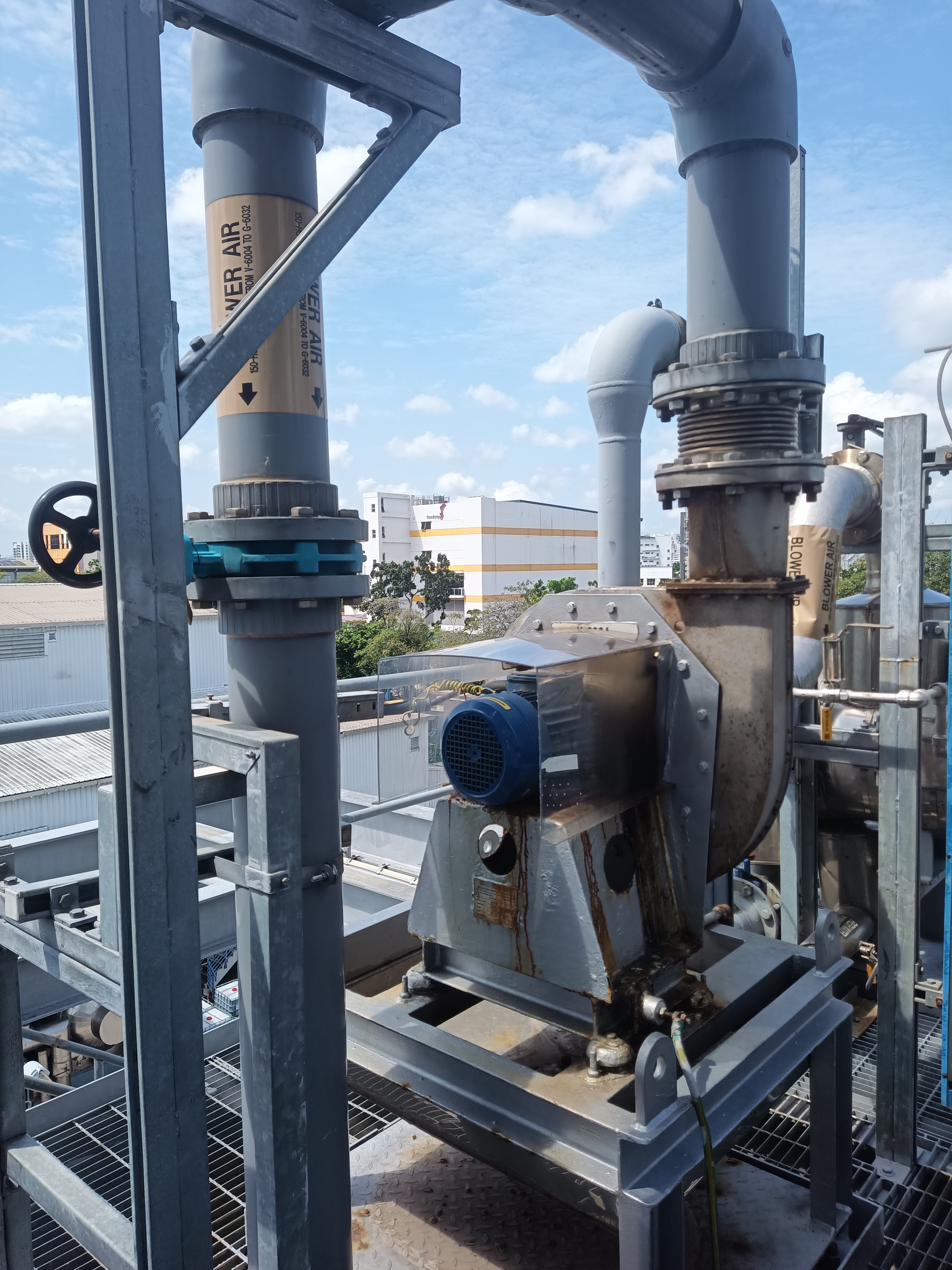

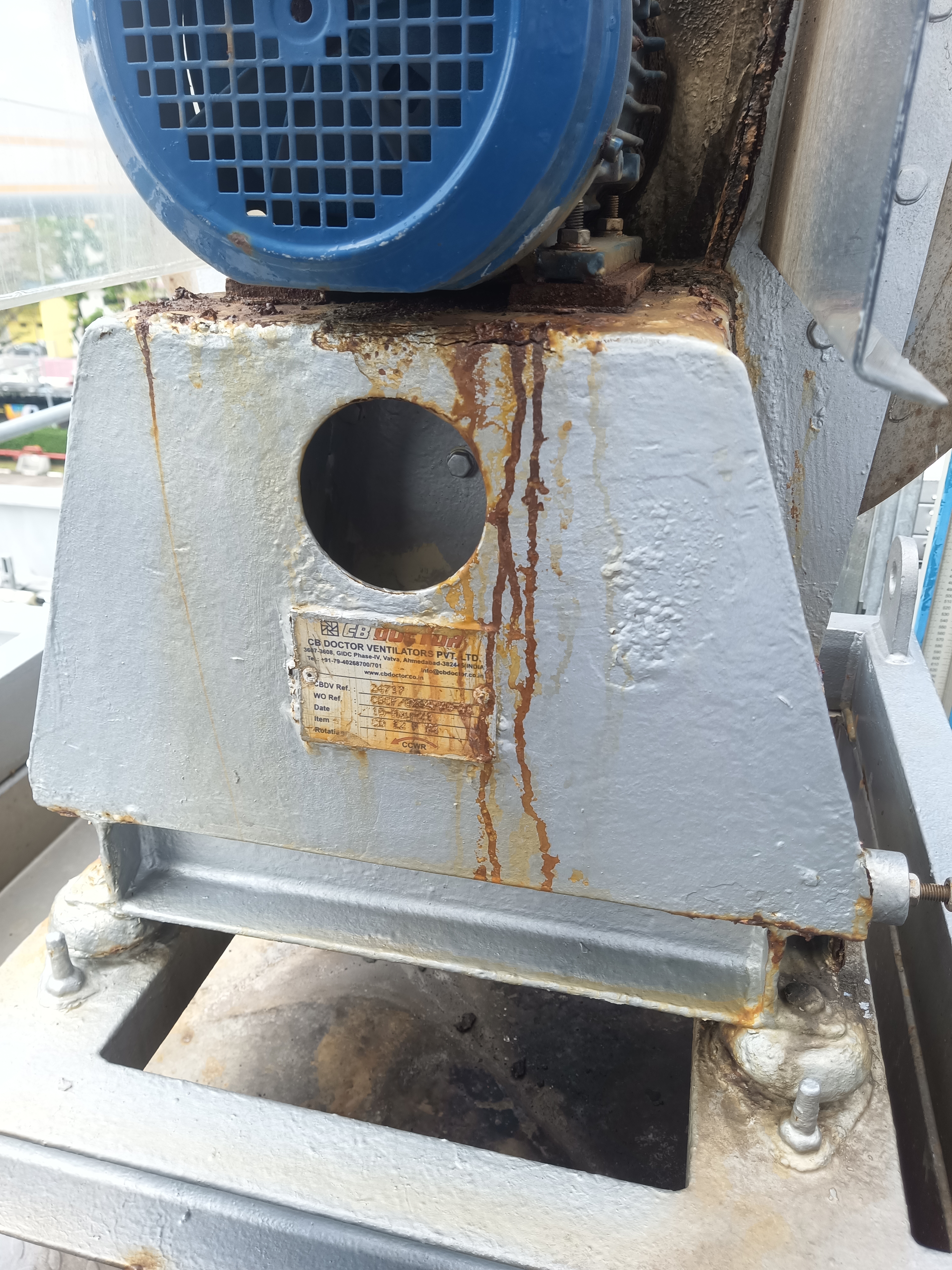

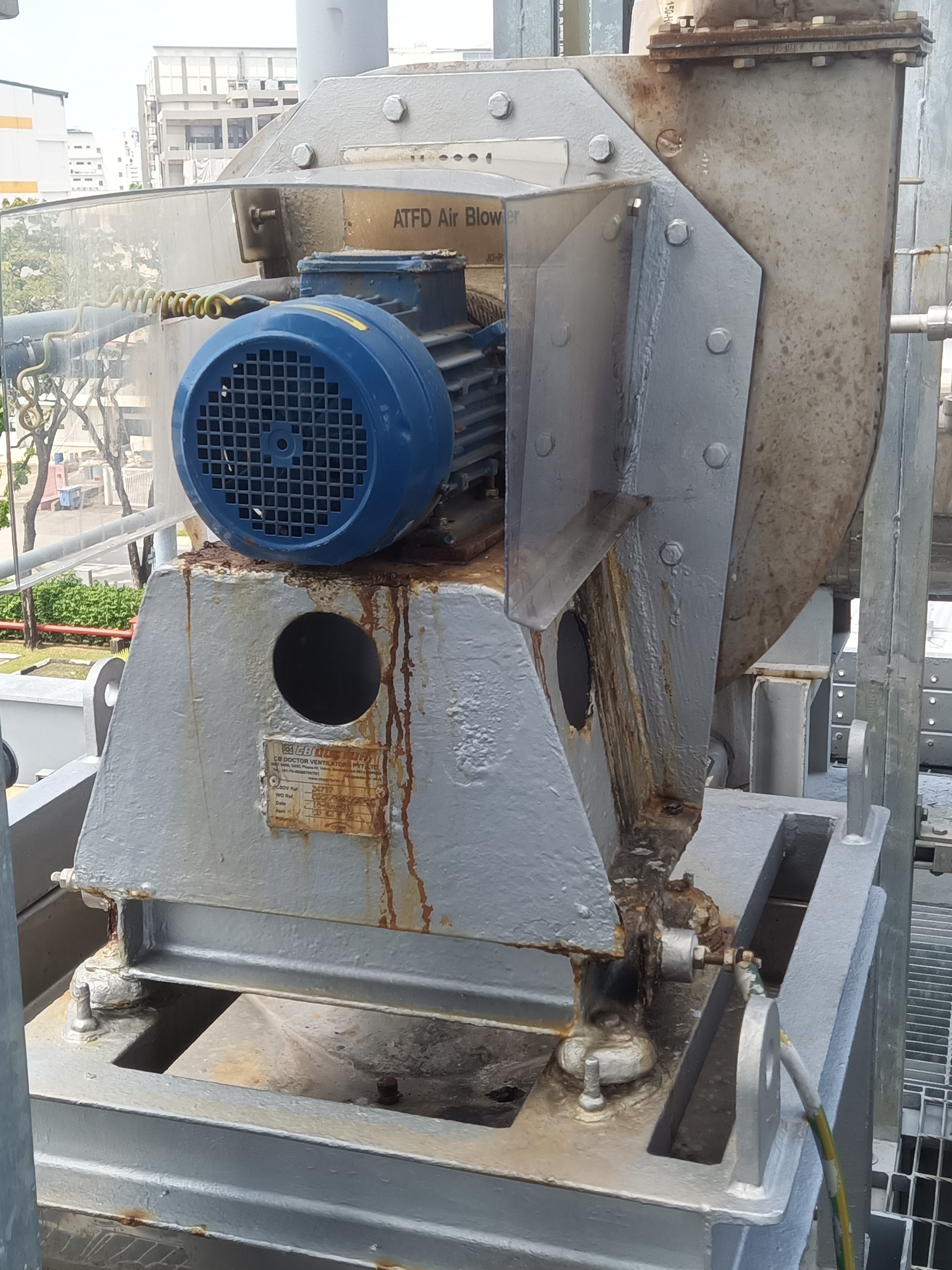

Air Blower

Fan Capacity : 11304 m³/hr

Steam Condensate Transfer Pump

Actual Calculated Flow : 4.577 m³/h
