No longer available

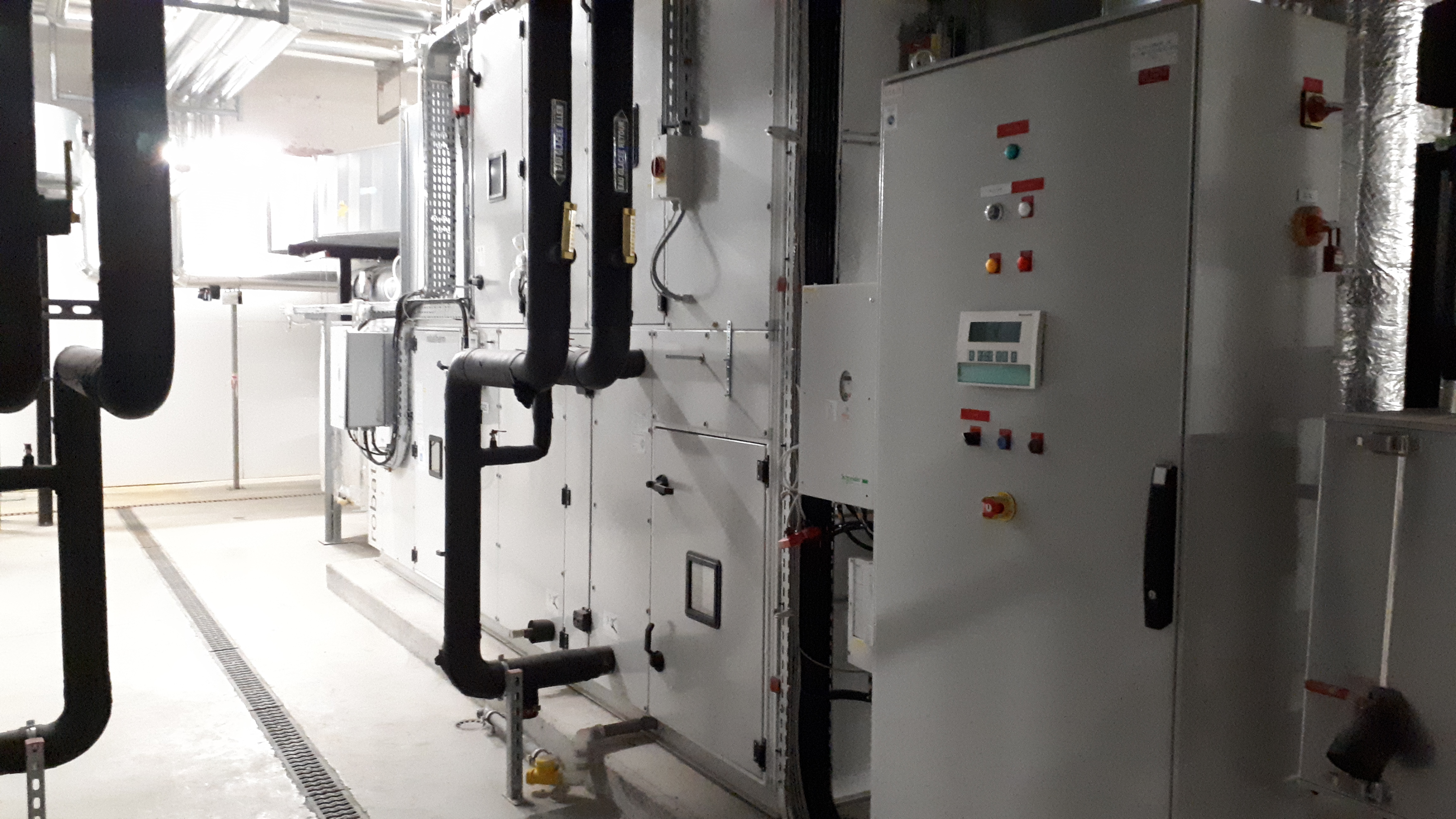

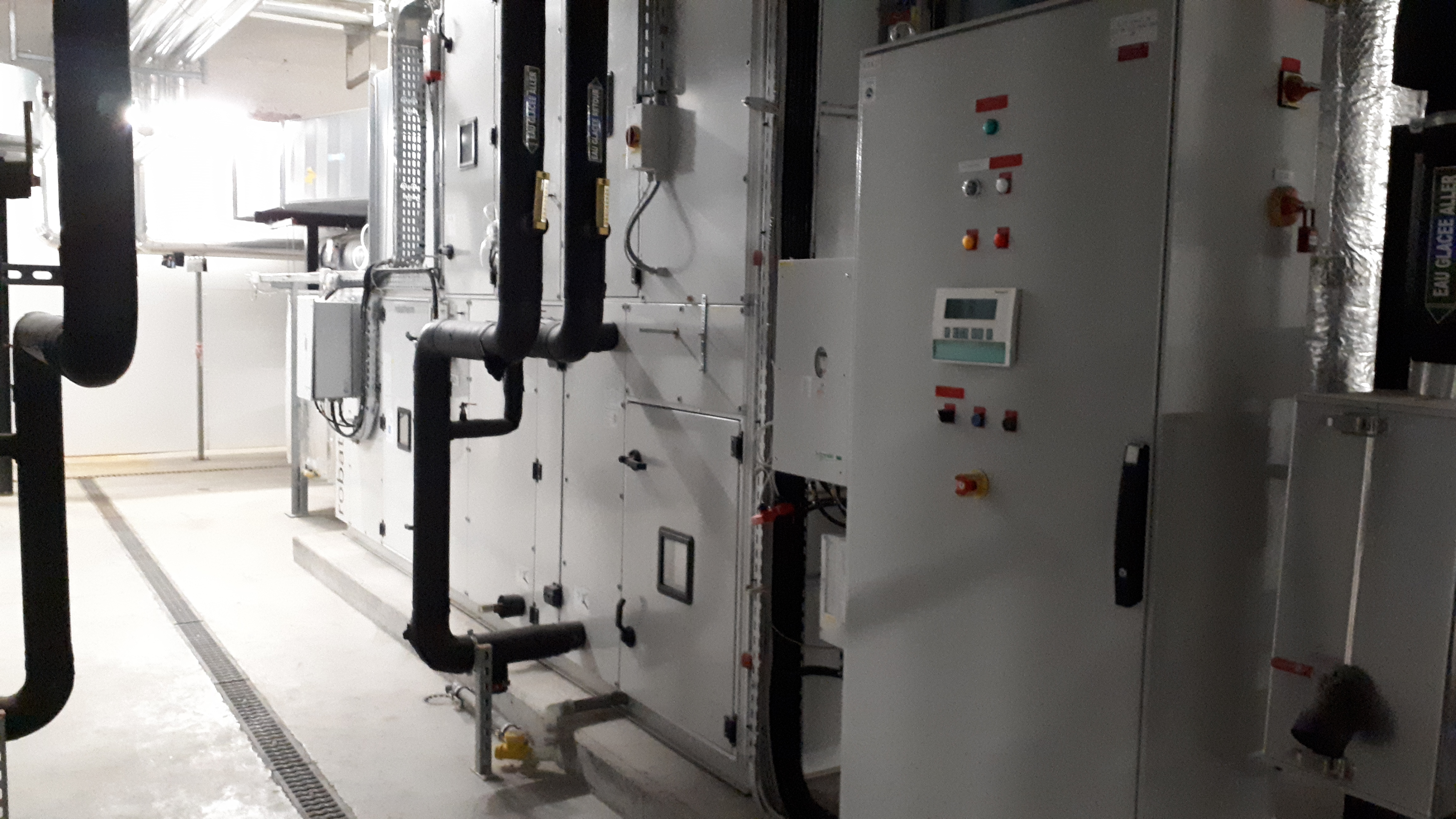

Air Handling Unit CTA 25-Robatherm-019.SF
Specifications
| Manufacturer | Robatherm |
| Model | RM 12/18 + RM 12/15 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 019.SF |
| Cta 25 | Plant 21.000 m3/H |
| Air flow | 13800 mᶟ/h. |
| External pressure | 950 Pa. |
| Total pressure | 1181 pa |
| Operating speed | 1934 1/min |
| Number frequency | 66 Hz |
| Max speed | 2290 1/min |
| Max. frequency | 78 Hz |
| Motor power | 1x11 kW |
| Motor speed | 1465 1 /min |
| Voltage | 400 V |
| Network freqency | 50 Hz. |
| Absorbed current | 28,7 A. |
| External pressure | 800 pa |
| Netowrk frequency | 21,2 A |
| Dirty filter pressure drop | 200 Pa. |
| Class | F7 |
| Pdc clean filter | 47 Pa. |
| Number of filters | 4x1/1 2x1/2. |
| Heat transfer fluid | EAU. |
| Hot capacity | 16,7 kw. |
| Air flow | 16450 mᶟ/h. |
| Fluid temp | 60 | 40°C |
