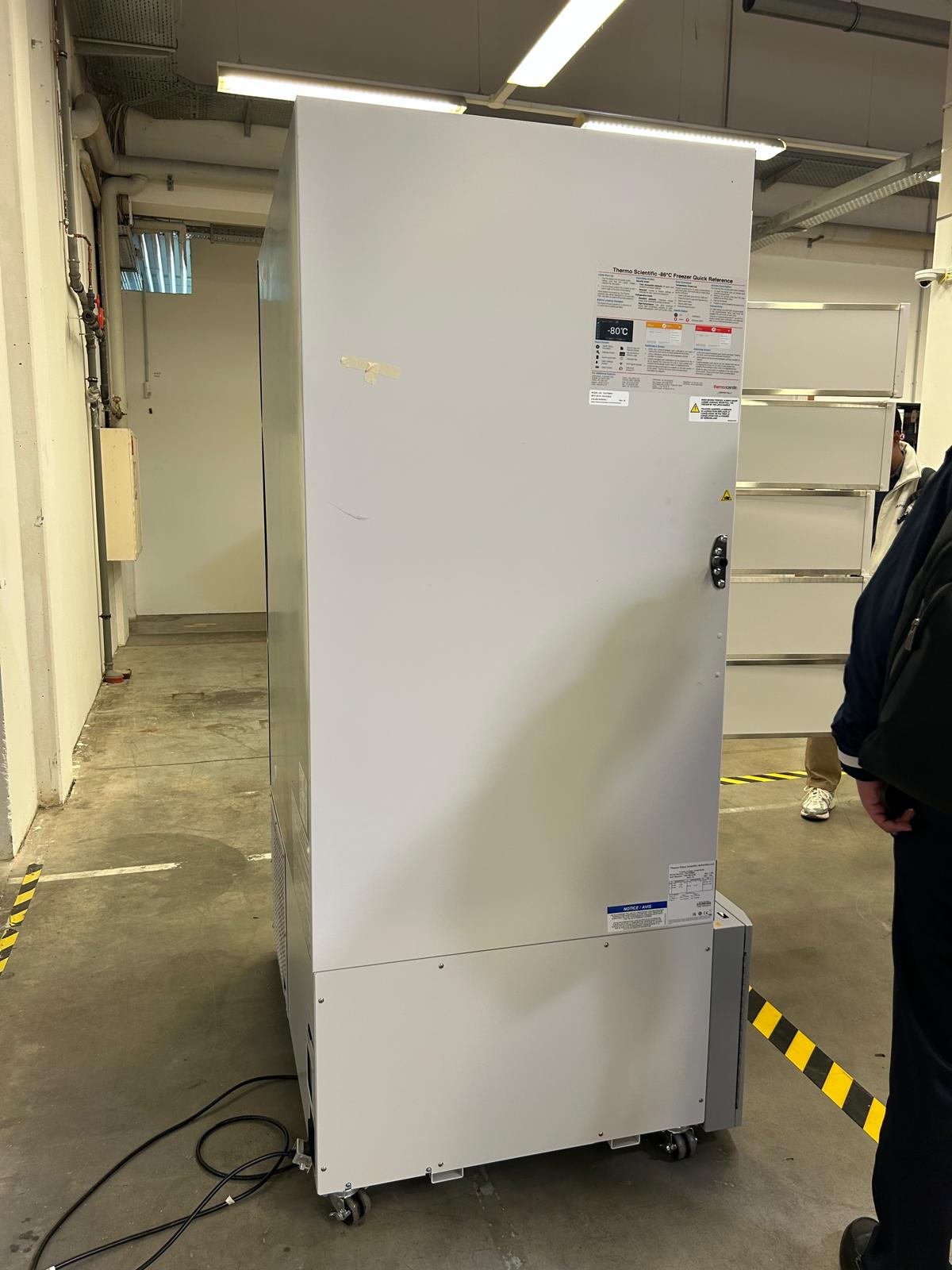

Freezer -86℃ - Thermo Fisher Scientific - TSK70086V - BT.189.GE

Location

Mainz, Germany

Description

  • LN2 or CO2 Backup System, HID Controlled Access, Chart Recorder Exterior Illumination Kit.

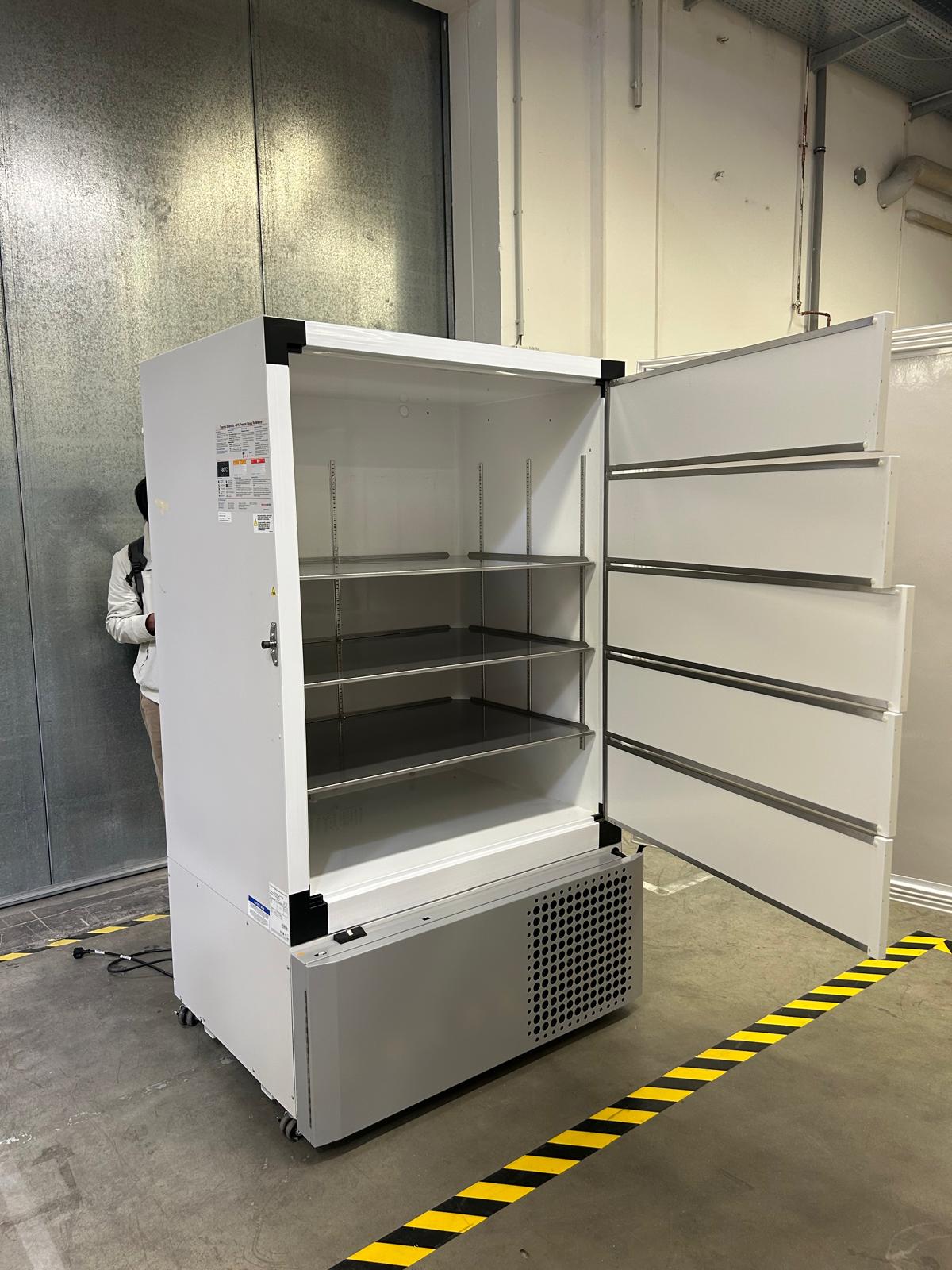

  • All freezers have been upgraded by the manufacturer to a 5-door inner layout. This is an enhancement from the standard 3-door design, significantly reducing cold loss and increasing energy efficiency during operation.


Show All

Specifications

ManufacturerThermo Fisher Scientific
ModelTSK70086V
Year2022
ConditionNew
Stock NumberBT.189.GE
Voltage208 - 230 V
Frequency50/60 Hz
Rated Current6.1 Amps
Phases1 Ph
Interior Dimensions (H×D×W)51.2 x 28.3 x 40.1 in. (1300 x 719 x 1019 mm)
Exterior Dimensions (H×D×W)78 x 37.8 x 45.2 in. (1981 x 960 x 1148 mm)
Shipping Dimensions (H×D×W)83.12 x 42.75 x 51.13 in. (2111 x 1086 x 1299 mm)
Shipping Weight/Net Weight869 lbs ( 304 kg) / 753 lbs (341 kg)
Door SealSilicone-Based Gasket Seal with Electrical Cabinet Perimeter Heater
Shelves3 Stainless Steel Adjustable Shelves in 1" (25mm) Increments
Shelf CapacityMax. Capacity per Shelf 285 lbs (128 kg)
Refrigeration SystemTwo Stage Cascade System
Compressor CapacityMax 525W, VCC
